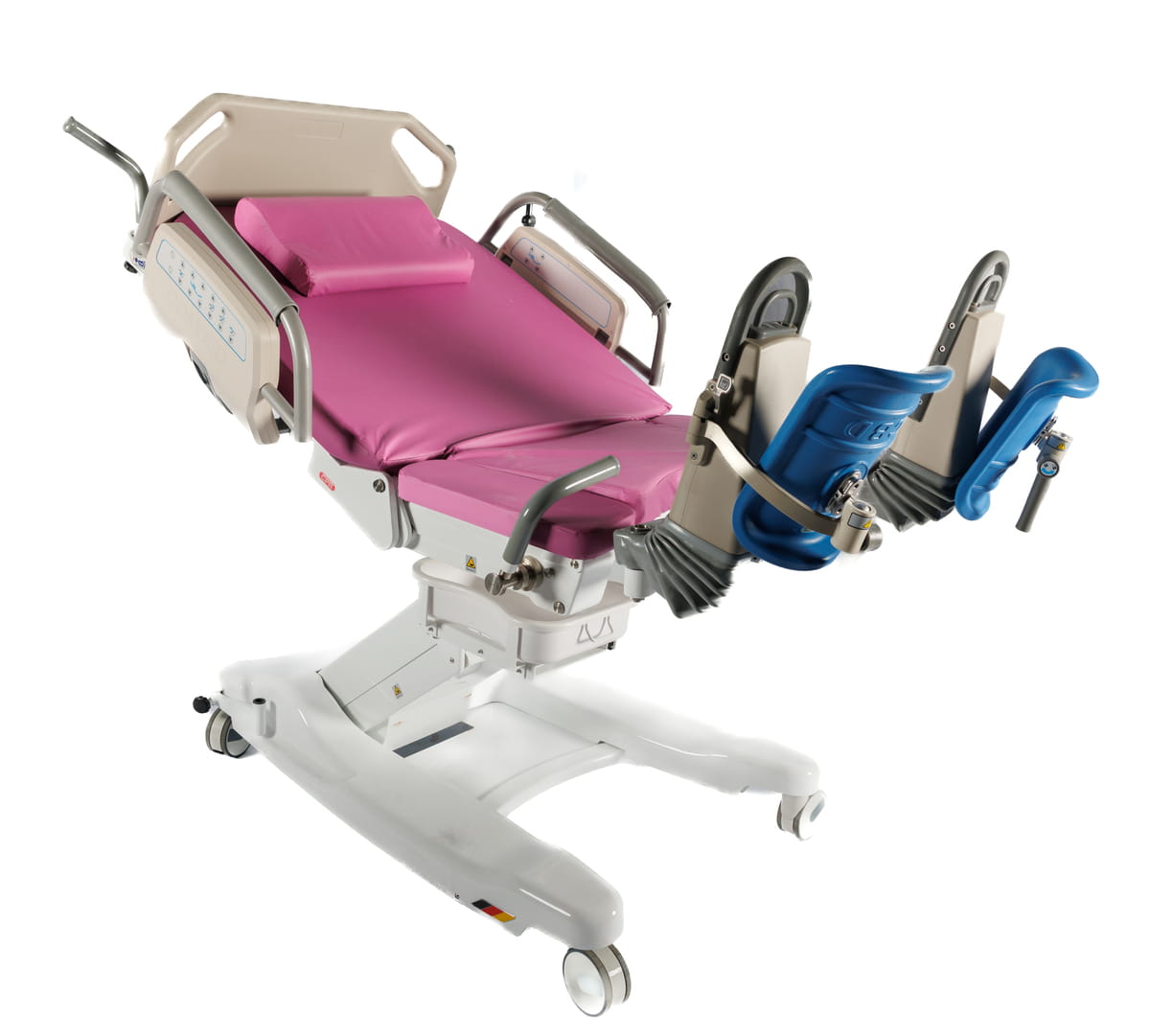

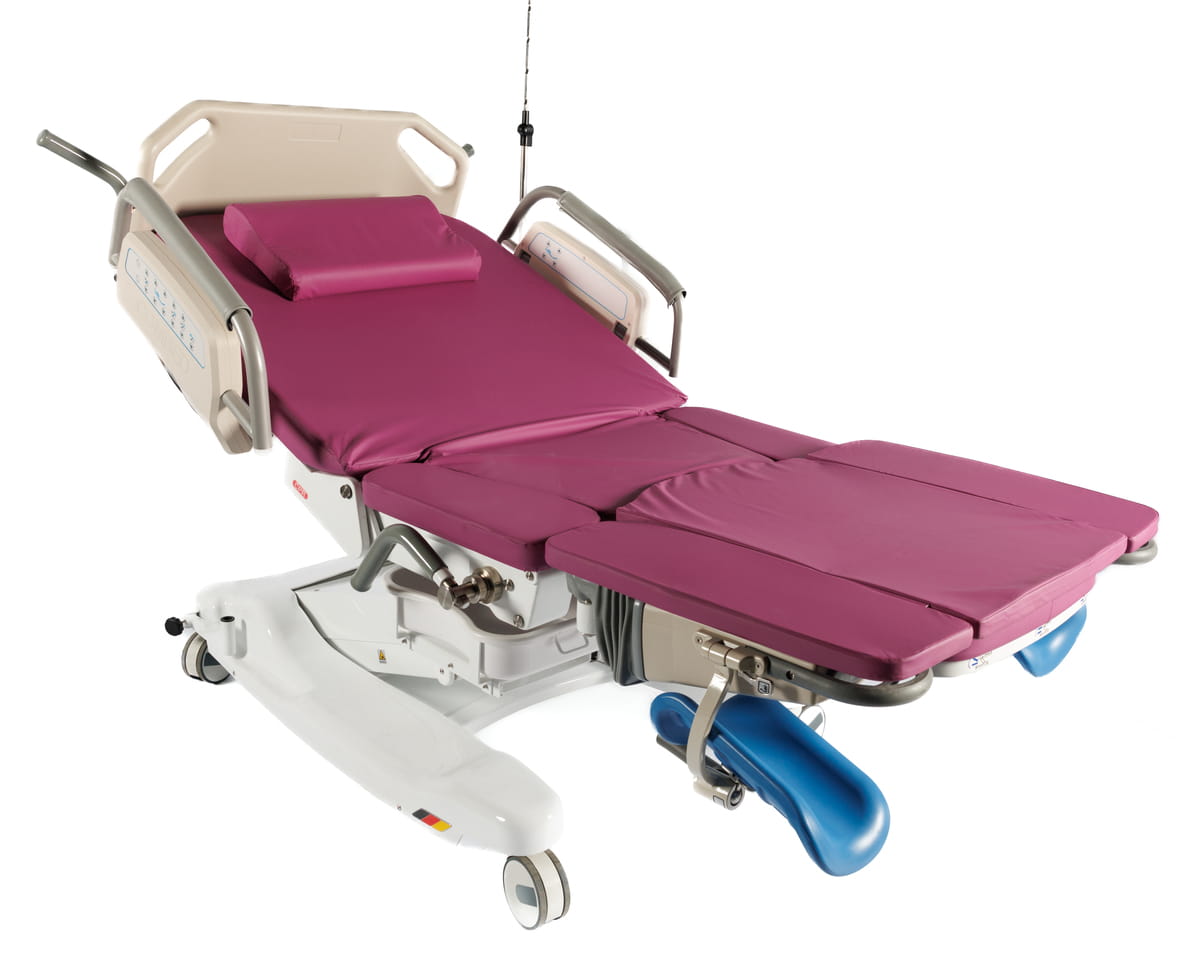

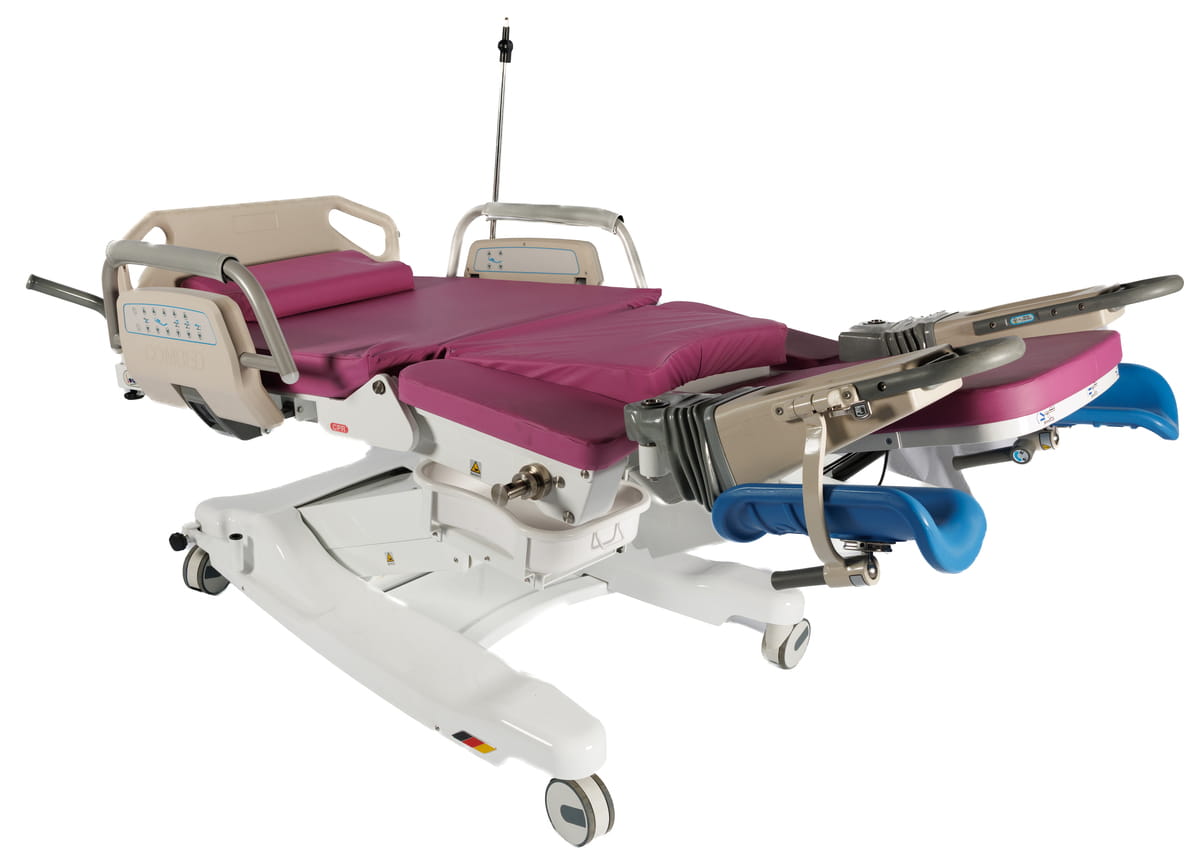

Delivery Bed DIXION DH-C101A07

3-Section height adjustable delivery bed

Heavy duty metal frame, electrostatically painted with epoxy powder.

Fully adjustable legs suppor

Sleeping surface made of ABS.

3 single drives + 1 control unit + 1 patient handset

Mattress with removable cover

Fluid basin

Build in leg section which is easily placed under the bed’s surface

Base / mechanisms cover made of ABS

4 Elastic bumpers

Receptions for IV pole

MOVEMENTS-FUNCTIONS-DIMENSIONS.

Trendelenburg 12°.

Range 380 mm.

Back section 70°.

Lowest height 520-540 mm.

w/ siderails – 1030mm/ 950mm/ 860mm.

RANGE.

OPTIONAL MOVEMENTS.

Anti-Trendelenburg 6°. Optional. in this case the height is increased by 50 mm.

Pelvic section lift 25°.

HEAD/FOOT FRAMES & PANELS.

Plastik frames with internal panel Plastik frames without internal panel.

SIDERAILS FOLLOWING BED’S MOVEMENTS.

Plastic side rails without internal panel Plastic side rails with internal panelOptions:.

Castors

BREAKING SYSTEM – SIMULTANEOUS / ONE OF THEM DIRECTIONAL.

METAL /PLASTIC/ DOUBLE PLASTIC.

DIXION DH-C101A02 is a delivery bed for positioning patients throughout childbirth, obstetric examinations, therapeutic procedures and surgical interventions.

Features

Electric adjustment of bed height, backrest, Trendelenburg and reverse Trendelenburg using a hand controller.

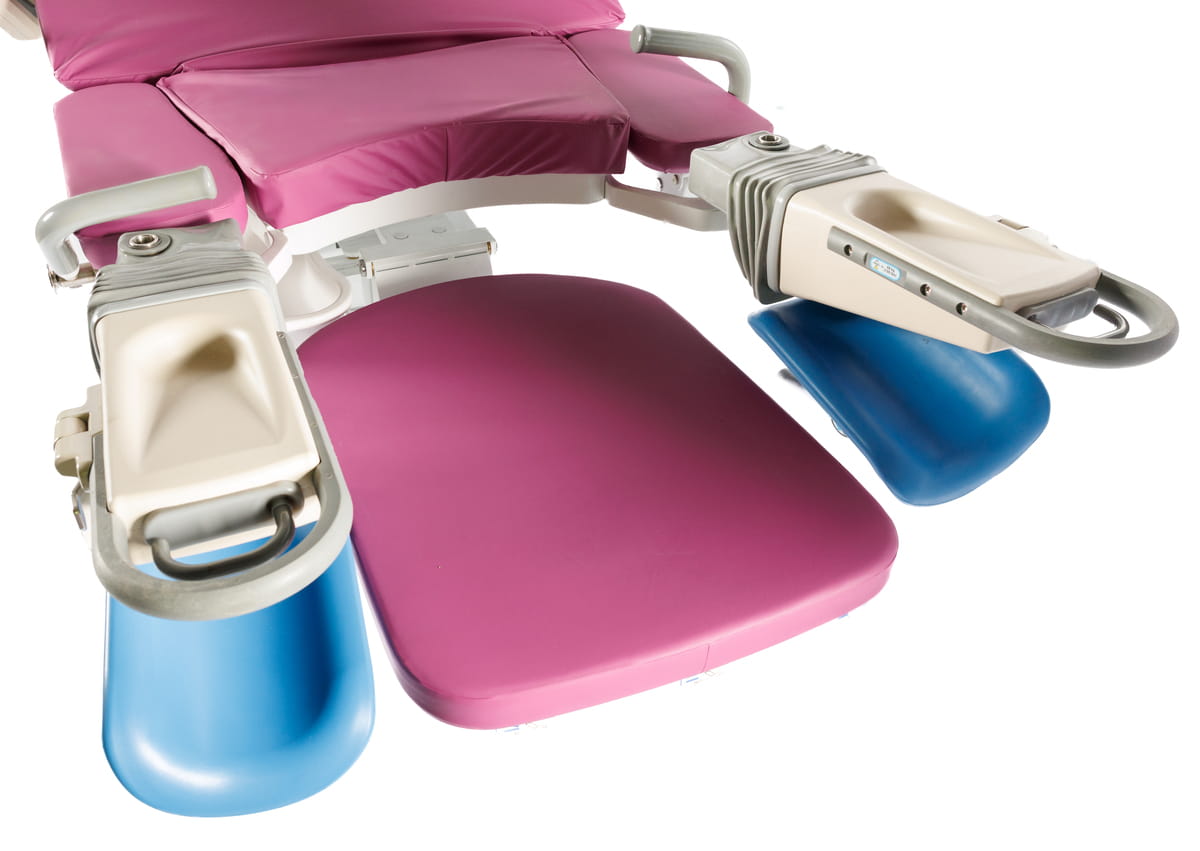

Removable leg section and adjustable Goepel leg supports with forward, backward, height, tilt and rotation adjustments.

Side rails lower for access and can rotate through 180°.

Foot supports, hand grips, an auxiliary table and a sliding fluid collection tray.

Castors with a locking pedal and two side bumpers for protection during transport.

Radiolucent lying surface for X-ray examinations on the bed.

Standard set

Hand controller

Goepel leg supports

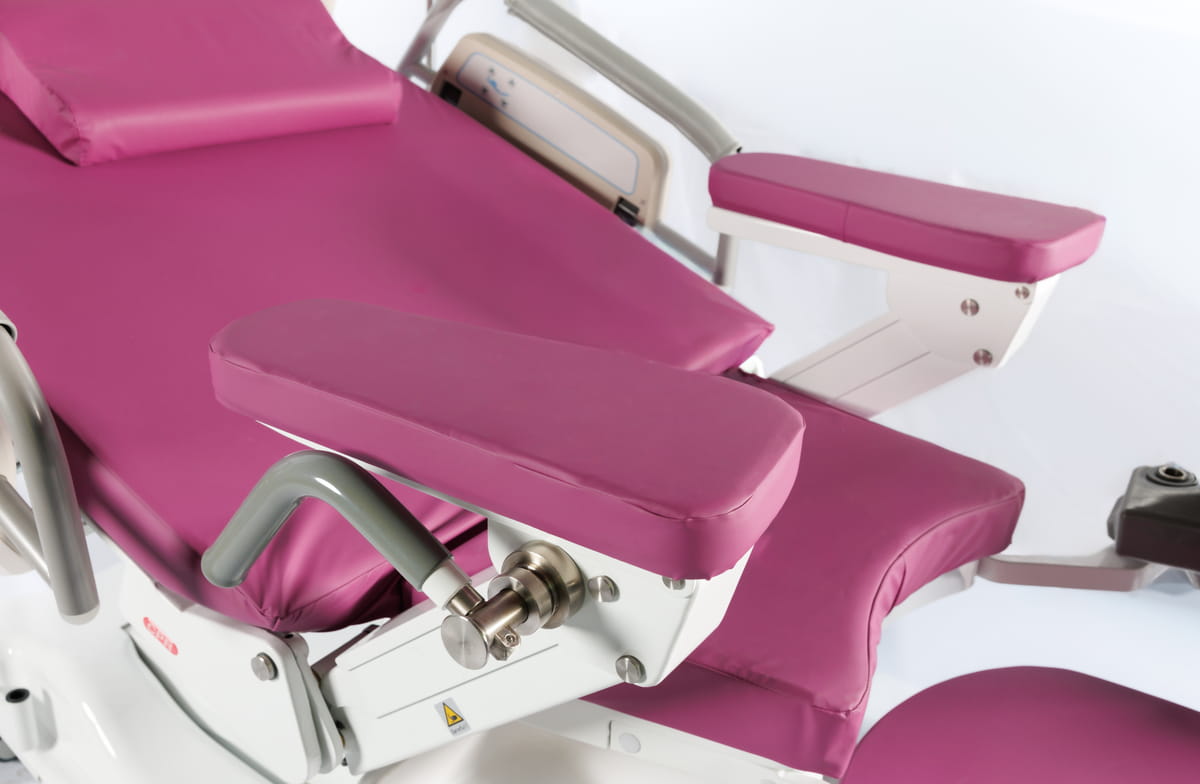

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Foot controller

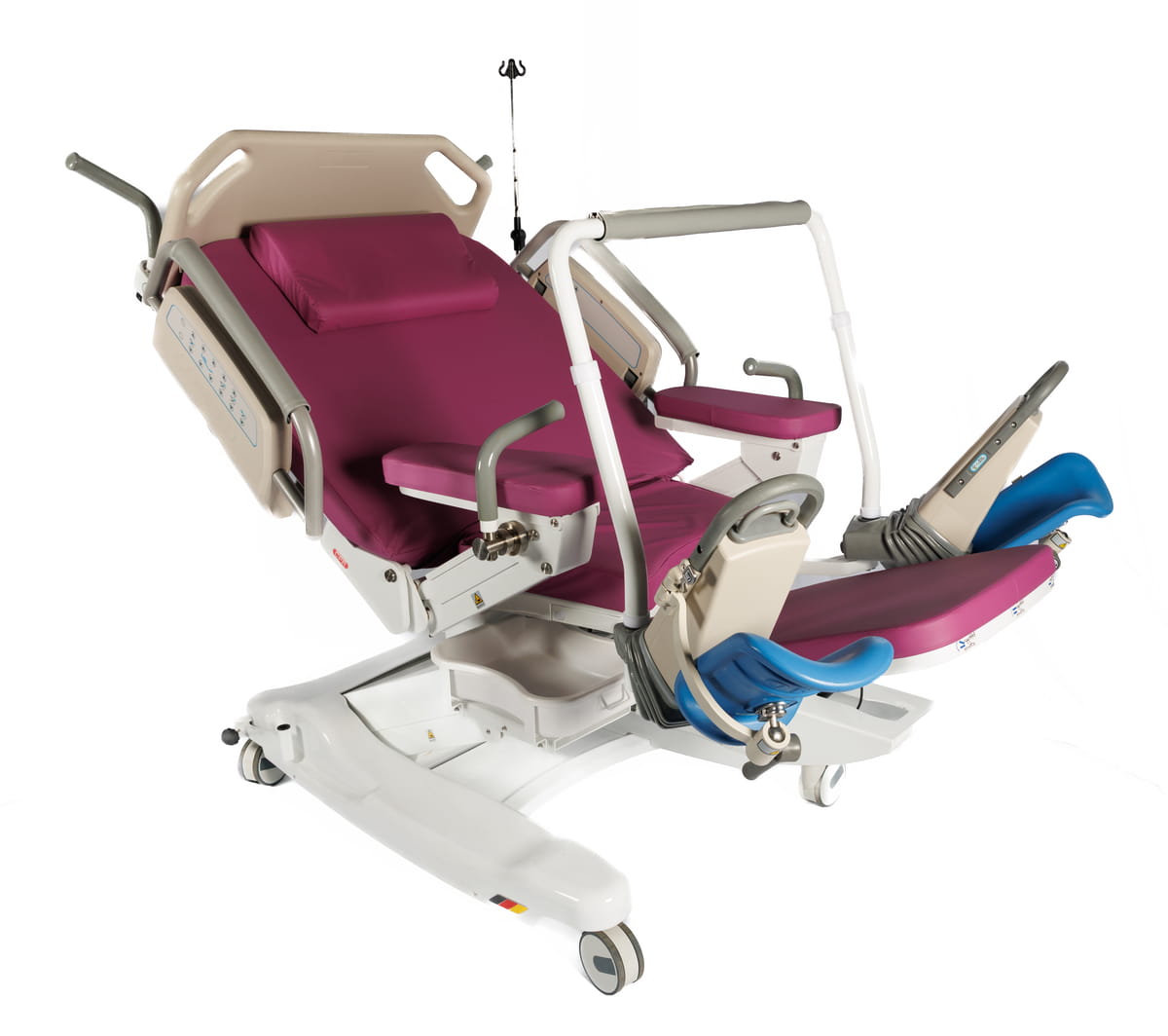

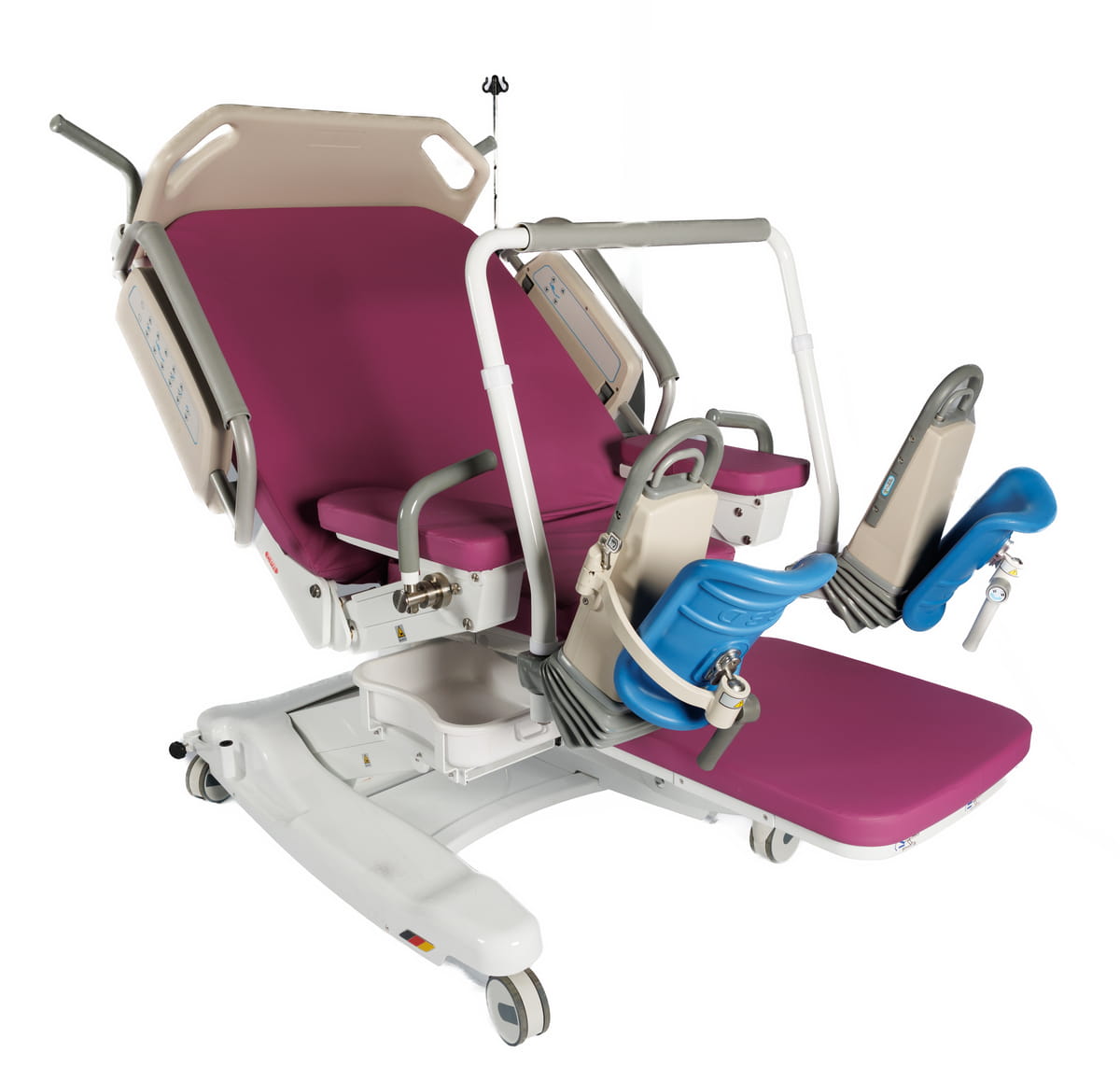

DIXION DH-C101A05 is a multifunctional delivery bed designed for family-centred childbirth, with a wider lying surface and support for upright, seated, side-lying, squatting and all-fours positions.

Features

Five electric motors for positioning; electric height, backrest, pelvic section, foot platform and birthing bar adjustment.

The foot platform raises and lowers electrically, rotates through 90° in either direction and can be placed beneath the pelvic section.

Adjustable, removable Goepel leg supports can also be used as arm supports.

Central braking system and built-in backup power with visual and audible indication.

Lowerable high-strength plastic side rails with controls on the outside for staff.

Removable headboard and foot platform for different clinical configurations.

Stainless-steel waste tray stows beneath the pelvic section or rotates through 90° into the delivery position.

Standard set

Side-rail control panel

Goepel leg supports

Birthing bar

Waste tray

Back and pelvic mattress
