Gynecology & obstetrics

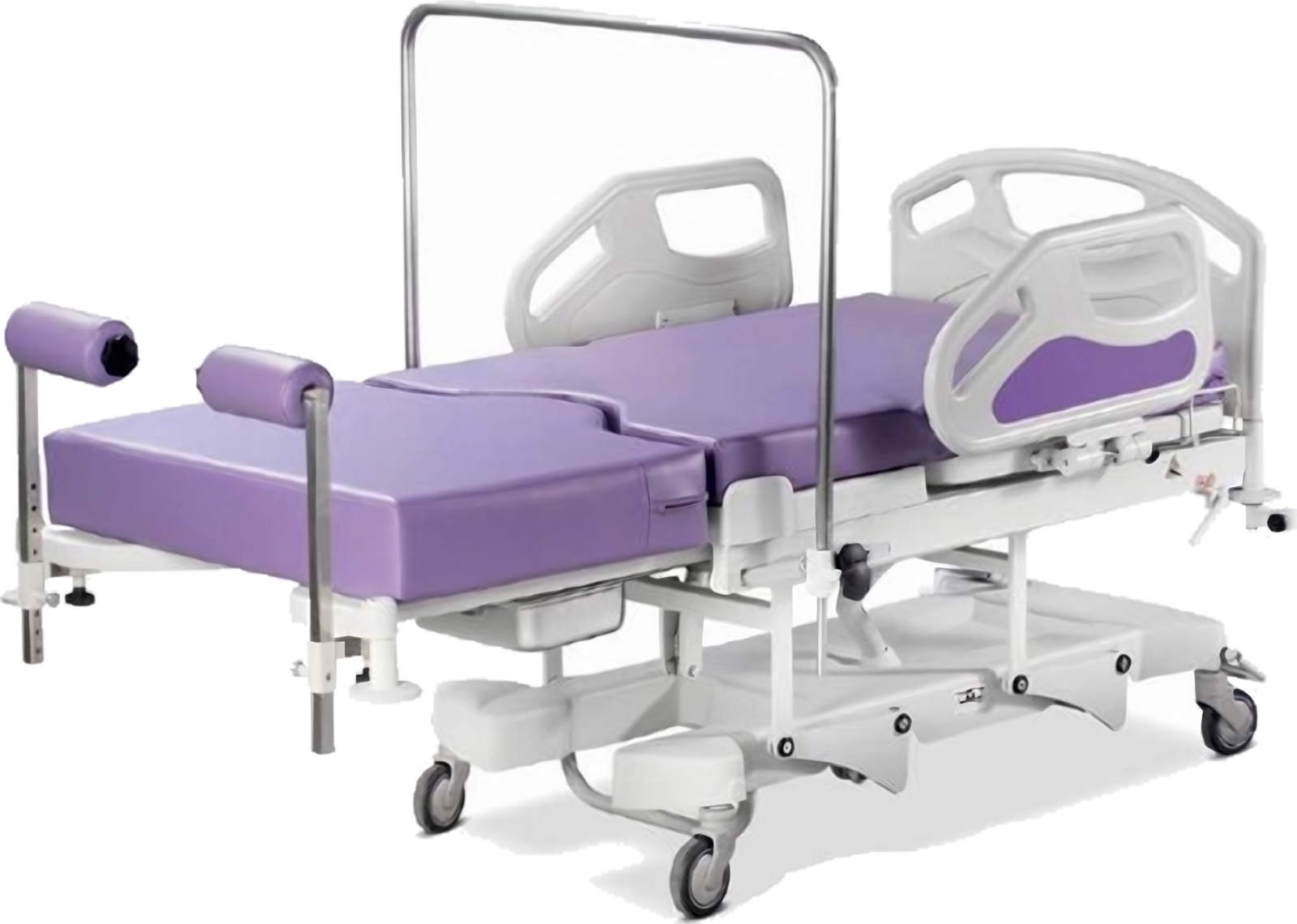

3-Section height adjustable delivery bed

Heavy duty metal frame, electrostatically painted with epoxy powder.

Fully adjustable legs suppor

Sleeping surface made of ABS.

3 single drives + 1 control unit + 1 patient handset

Mattress with removable cover

Fluid basin

Build in leg section which is easily placed under the bed’s surface

Base / mechanisms cover made of ABS

4 Elastic bumpers

Receptions for IV pole

MOVEMENTS-FUNCTIONS-DIMENSIONS.

Trendelenburg 12°.

Range 380 mm.

Back section 70°.

Lowest height 520-540 mm.

w/ siderails – 1030mm/ 950mm/ 860mm.

RANGE.

OPTIONAL MOVEMENTS.

Anti-Trendelenburg 6°. Optional. in this case the height is increased by 50 mm.

Pelvic section lift 25°.

HEAD/FOOT FRAMES & PANELS.

Plastik frames with internal panel Plastik frames without internal panel.

SIDERAILS FOLLOWING BED’S MOVEMENTS.

Plastic side rails without internal panel Plastic side rails with internal panelOptions:.

Castors

BREAKING SYSTEM – SIMULTANEOUS / ONE OF THEM DIRECTIONAL.

METAL /PLASTIC/ DOUBLE PLASTIC.

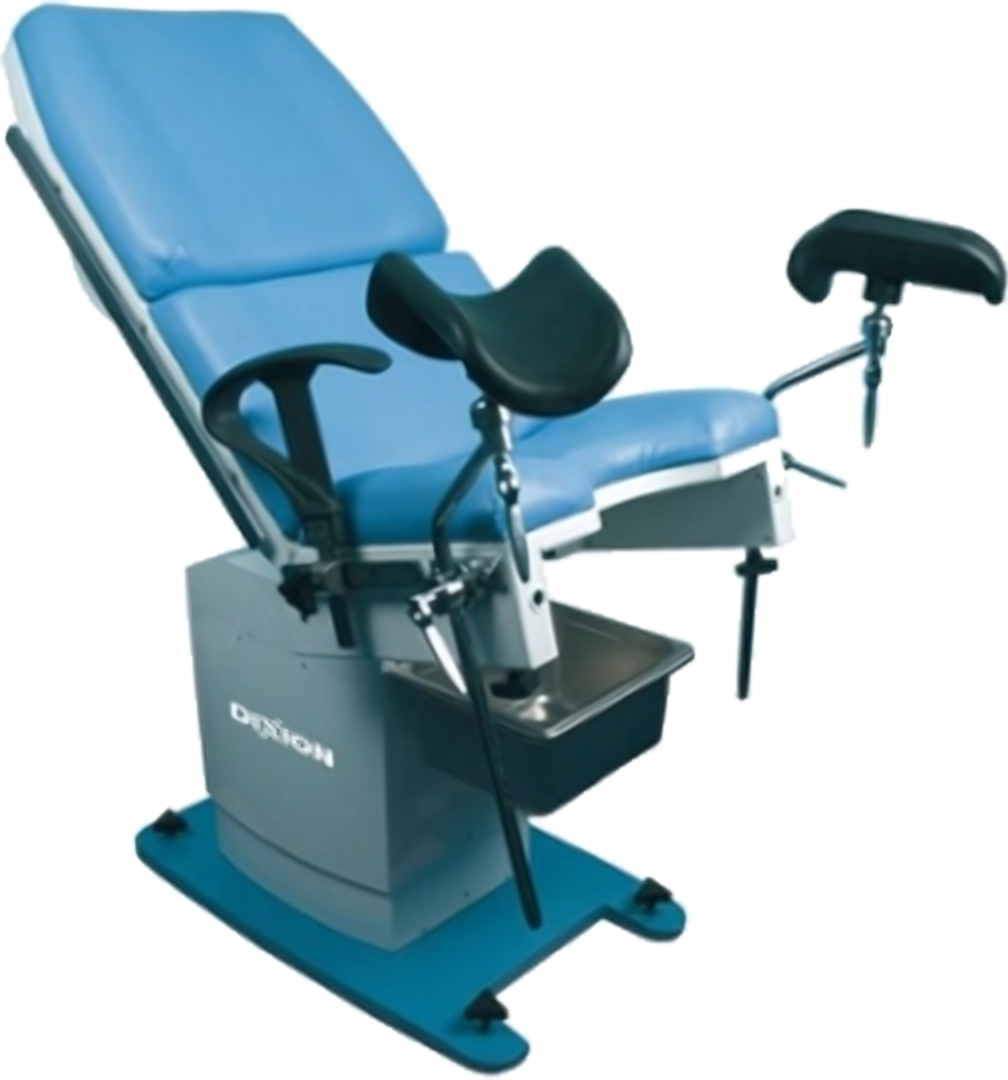

Multipurpose Gynecological Table Grace 8400 provides a comfortable examination for both the patient and the doctor.

Features

Large scope of adjustment: height, backrest angle and seat angle

Seat cover: seamless waterproof material resistant to cleaning substances

Built-in holder for disposable drapes

Small rollers to move the chair

Adjustable to table position

Standard set

Hand rest – 2 pcs

Gopel knee crutches – 2 pcs

Rectangular basin – 1 pc

Leg plate – 1 pc

Foot switch – 1 pc

Minimum ipx4 protection lineer motors for silent operation

Detachable leg extension

Remote control battery for non-stop operating

Electrically controlled backrest, height, trendelenburg and

antitrendelenburg movements ability to ­ fixing on the floor

Nano ceramic, elecrtostatic powder covered metal parts abs plastic bottom chassis

Rail for accessuars connection waste basin

Two-pieces upholstery with polyurethan ­ lling

Squatting bar

Calf support

Battery

Nano ceramic, electrostatic epoxy polyester powder metal parts

Minimum ipx4 motors and control box

Electronically controlled backrest, height, trendelenburg, antitrendelenburg, leg support and calf support positions by remote control

Detachable chromium-nickel waste basin

Anticorrosive chromium-nickel covered accessories

Adjustable calf support

Easy to clean designed abs plastic chassis

Ability to ­ xing on the ‑ oor

Towel roller

Battery for non-stop operation

Soft, easy to clean polyurethane lying surface

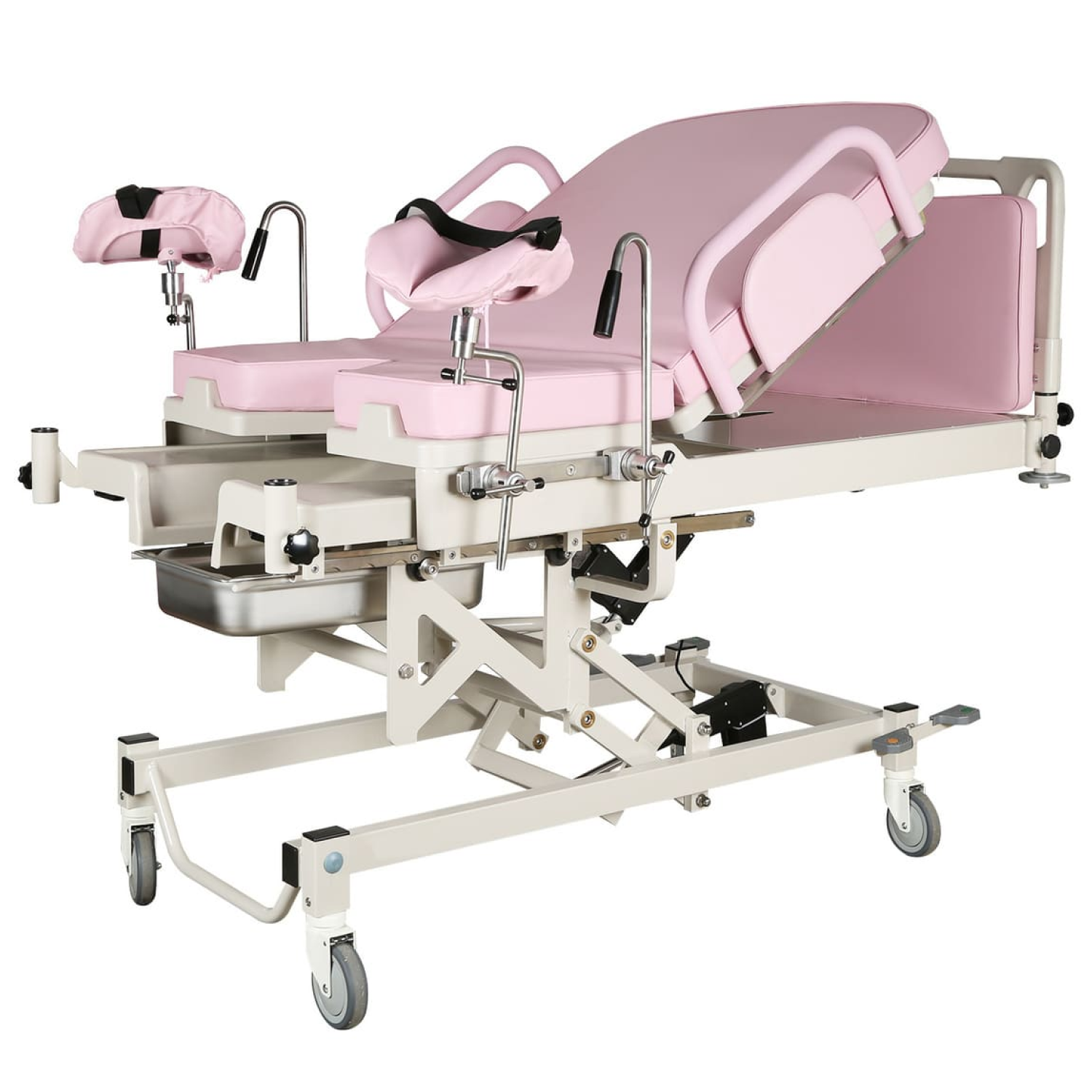

DIXION DH-C101A02 is a delivery bed for positioning patients throughout childbirth, obstetric examinations, therapeutic procedures and surgical interventions.

Features

Electric adjustment of bed height, backrest, Trendelenburg and reverse Trendelenburg using a hand controller.

Removable leg section and adjustable Goepel leg supports with forward, backward, height, tilt and rotation adjustments.

Side rails lower for access and can rotate through 180°.

Foot supports, hand grips, an auxiliary table and a sliding fluid collection tray.

Castors with a locking pedal and two side bumpers for protection during transport.

Radiolucent lying surface for X-ray examinations on the bed.

Standard set

Hand controller

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Foot controller

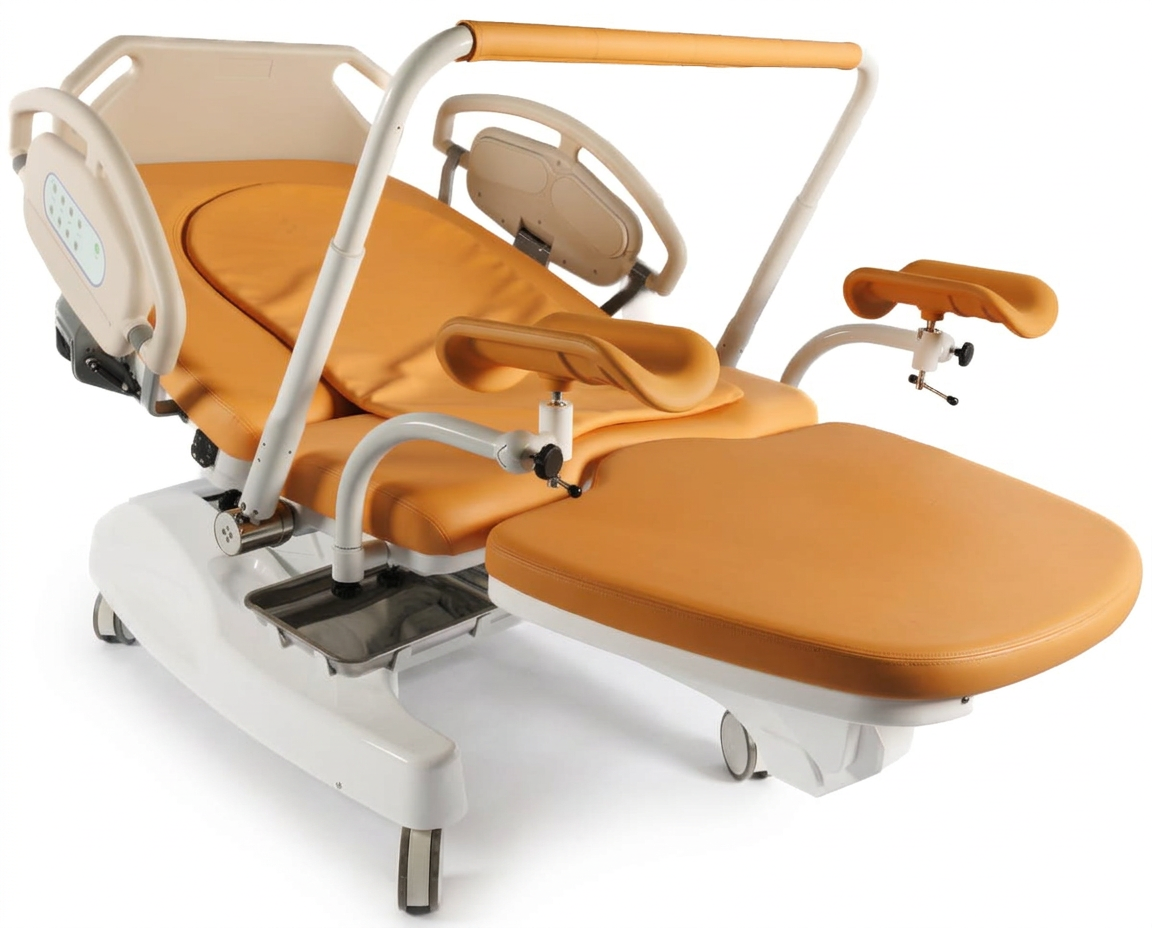

DIXION DH-C101A05 is a multifunctional delivery bed designed for family-centred childbirth, with a wider lying surface and support for upright, seated, side-lying, squatting and all-fours positions.

Features

Five electric motors for positioning; electric height, backrest, pelvic section, foot platform and birthing bar adjustment.

The foot platform raises and lowers electrically, rotates through 90° in either direction and can be placed beneath the pelvic section.

Adjustable, removable Goepel leg supports can also be used as arm supports.

Central braking system and built-in backup power with visual and audible indication.

Lowerable high-strength plastic side rails with controls on the outside for staff.

Removable headboard and foot platform for different clinical configurations.

Stainless-steel waste tray stows beneath the pelvic section or rotates through 90° into the delivery position.

Standard set

Side-rail control panel

Goepel leg supports

Birthing bar

Waste tray

Back and pelvic mattress

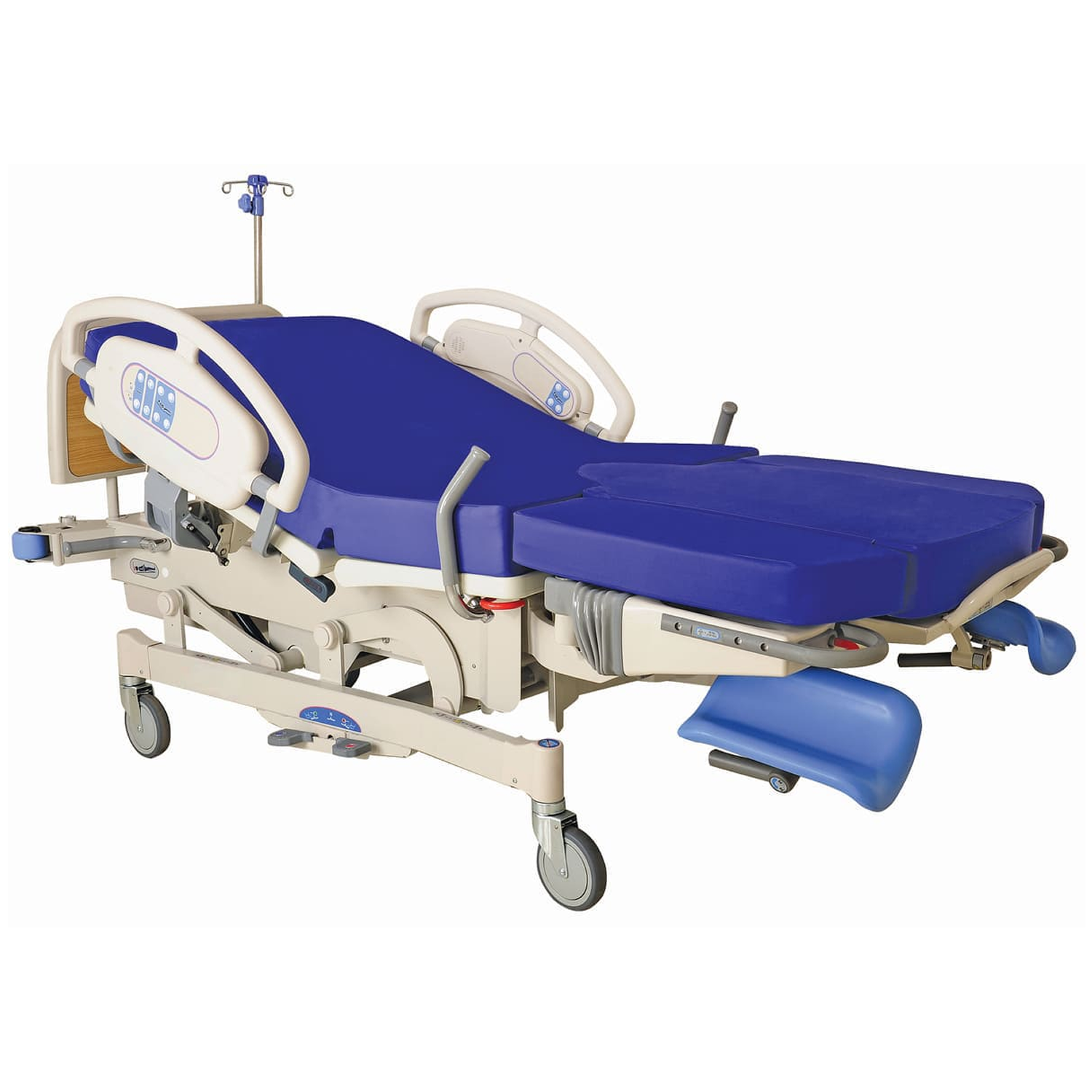

DIXION DH-C101A06 is a delivery bed with electric positioning, integrated controls, backup power, night lighting and a CPR release for everyday obstetric care.

Features

Electric adjustment of height, backrest and leg-section height, with manual Trendelenburg positioning.

Foot supports rotate horizontally and vertically to suit the procedure.

Controls on the inside and outside of the side rails operate bed positioning, night lighting and the integrated audio system.

Built-in battery maintains electric operation when mains power is unavailable.

CPR handle rapidly returns the bed sections to a horizontal position.

Adjustable foot and Goepel leg supports, removable auxiliary table, fluid collection tray and IV pole.

Standard set

Side-rail control panel

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Waterproof cover

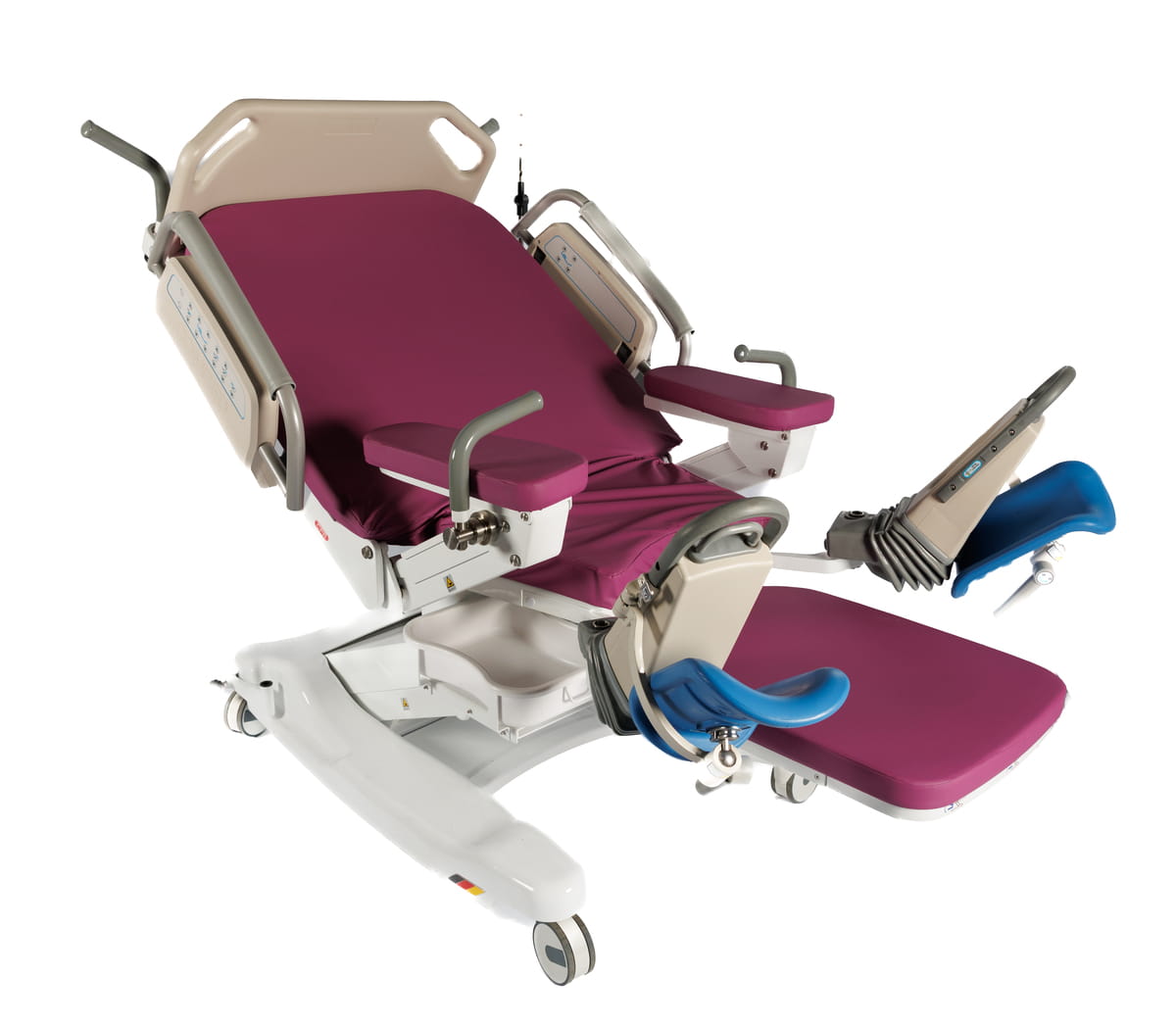

DIXION DH-C101A07 is a multifunctional delivery bed for maternity hospitals and perinatal centres, supporting labour through the early postpartum period and a range of birthing positions.

Features

Supports supine, side-lying, seated, standing, kneeling, squatting, all-fours and lithotomy positions, including use without the leg section.

Five electric motors adjust bed height, backrest, pelvic section, armrests and Trendelenburg position.

Birthing bar with three height settings; foot platform rotates through 90° in either direction and stows beneath the pelvic section.

The leg section lifts, folds and stows beneath the pelvic section to increase access.

Adjustable Goepel supports can serve as hand supports; armrests lower to the level of the lying surface.

Extra-low starting position and conversion to a chair position.

Electric braking, central castor brakes and backup power with visual and audible indication.

Rapid CPR positioning, reinforced side rails with inner and outer controls, and night lighting in the bed base.

Mattress with a removable waterproof cover, stainless-steel waste tray, removable headboard and leg section.

Standard set

Side-rail control panel

Goepel leg supports

Armrests

Hand grips

Birthing bar

Waste tray

IV pole

Head pillow

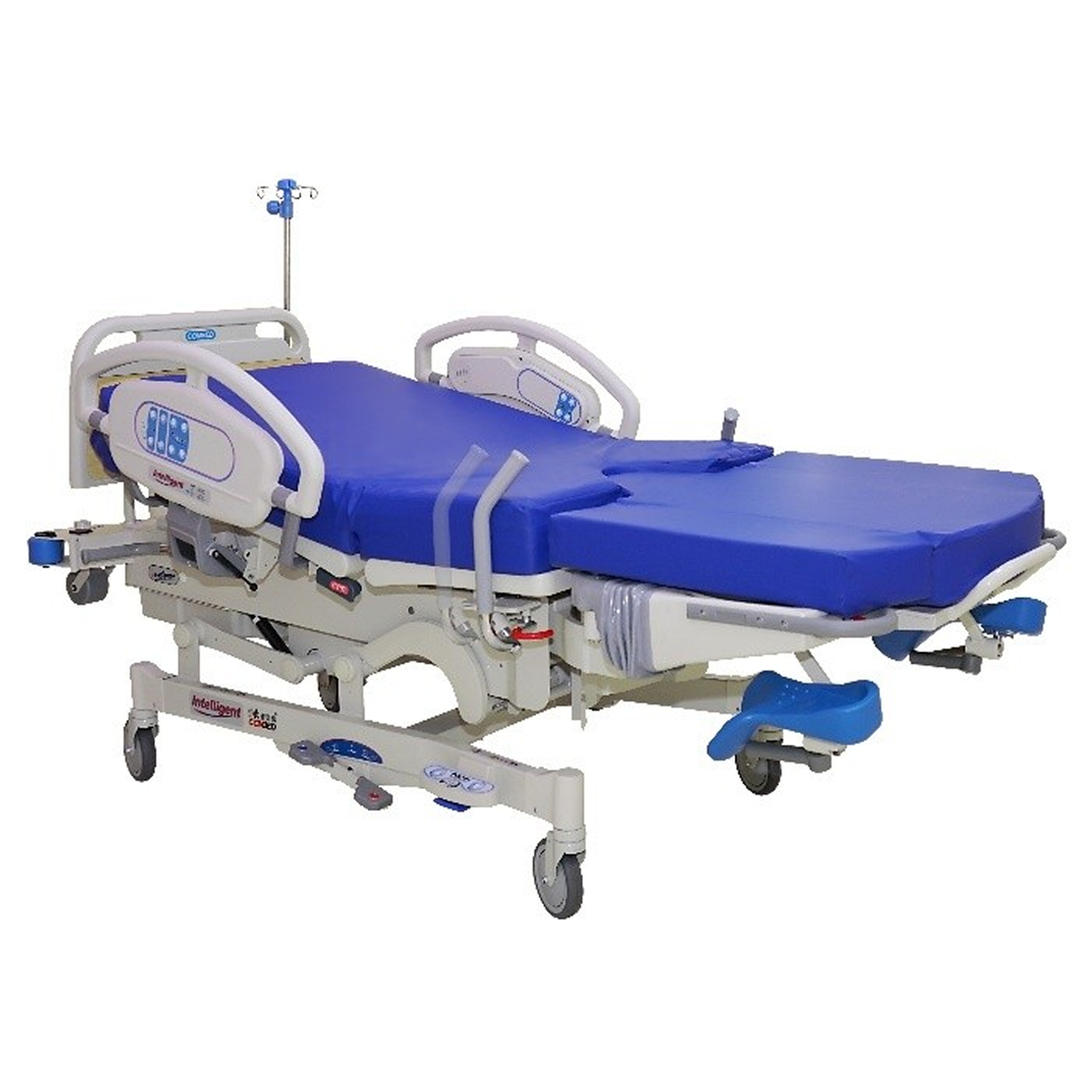

DIXION DH-C101A08 is a delivery bed designed for labour and recovery, combining electric positioning with controls for staff and patients, night lighting and an integrated audio system.

Features

Electric adjustment of height, backrest and leg section; manual head-section adjustment and a low starting position.

Pelvic-section lift and Trendelenburg positioning for clinical access.

Anatomically shaped, non-slip Goepel leg supports and adjustable hand grips.

Split lifting side rails, central braking and a quick-release CPR mechanism.

Removable headboard, night lighting around the bed and floor, and an integrated audio system.

Dual-sided controls for staff and patients, an integrated foot pedal for height adjustment and protection against accidental activation.

Bluetooth connectivity for remote positioning and LINAK linear actuators from Denmark.

Memory-foam mattress with a seamless, waterproof, breathable cover.

Standard set

Foot controller

Side-rail control panel

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Gel mattress

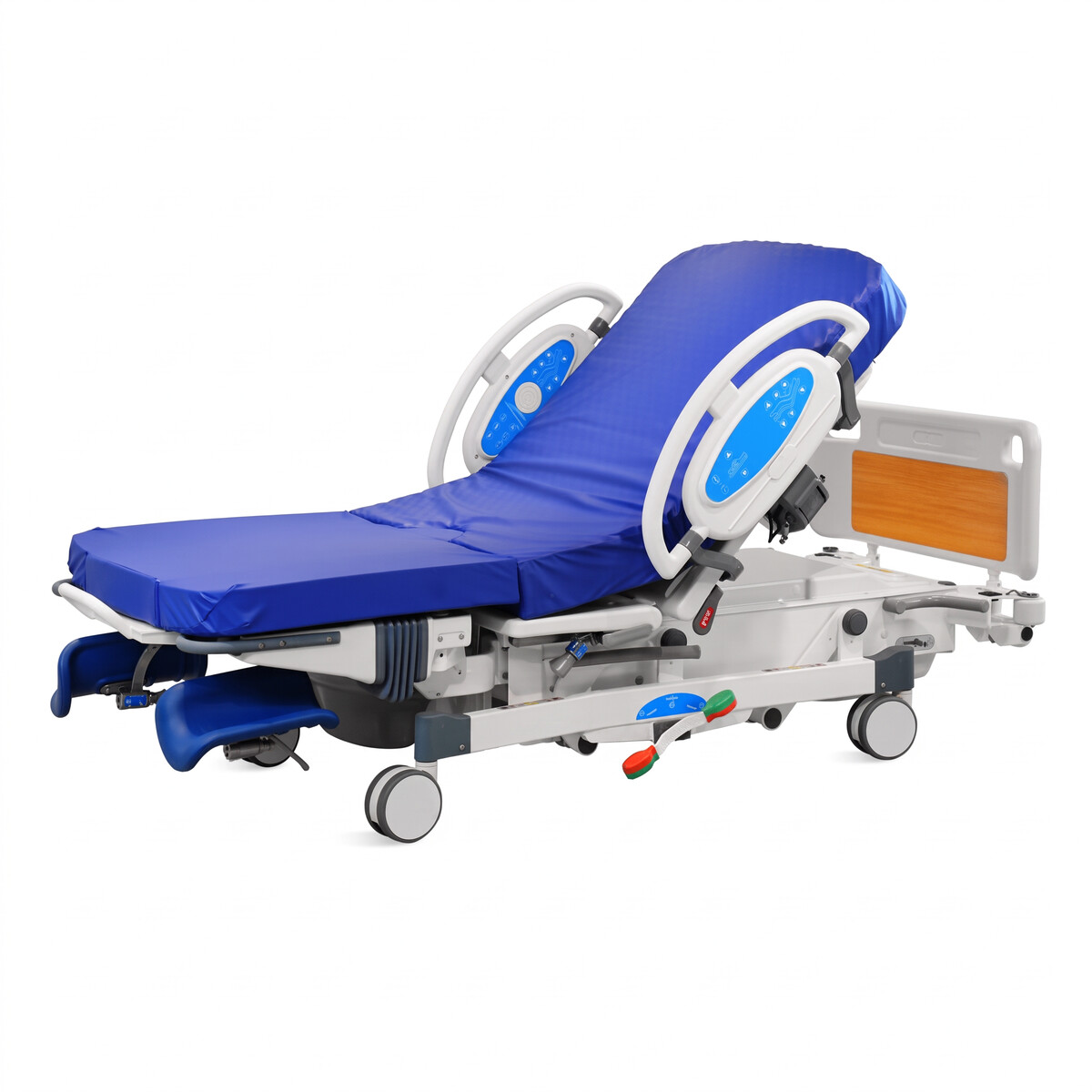

The DIXION Partus 5988 supports labour, delivery and recovery in one bed, with electric positioning, leg supports and handle-mounted controls.

Key features

Electric adjustment of bed positions

Leg supports

Control panels on the patient handles

Central-locking castors
