Delivery Bed DIXION Comfort

DIXION DH-C101A02 is a delivery bed for positioning patients throughout childbirth, obstetric examinations, therapeutic procedures and surgical interventions.

Features

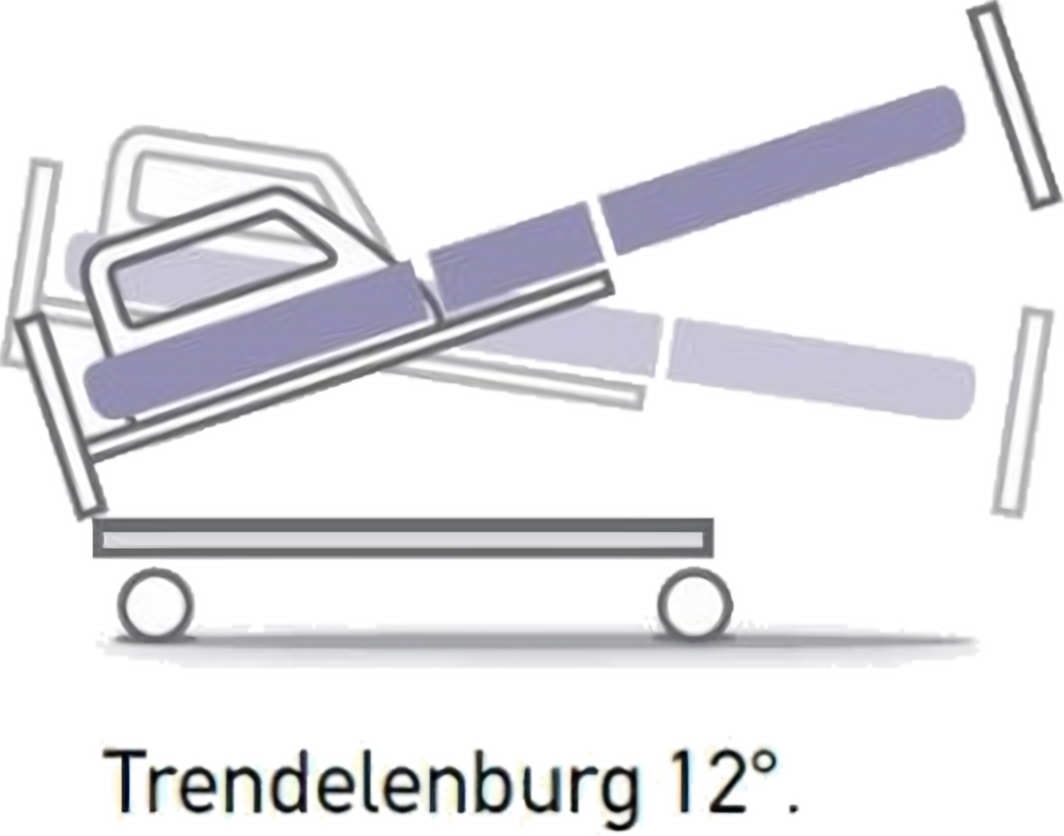

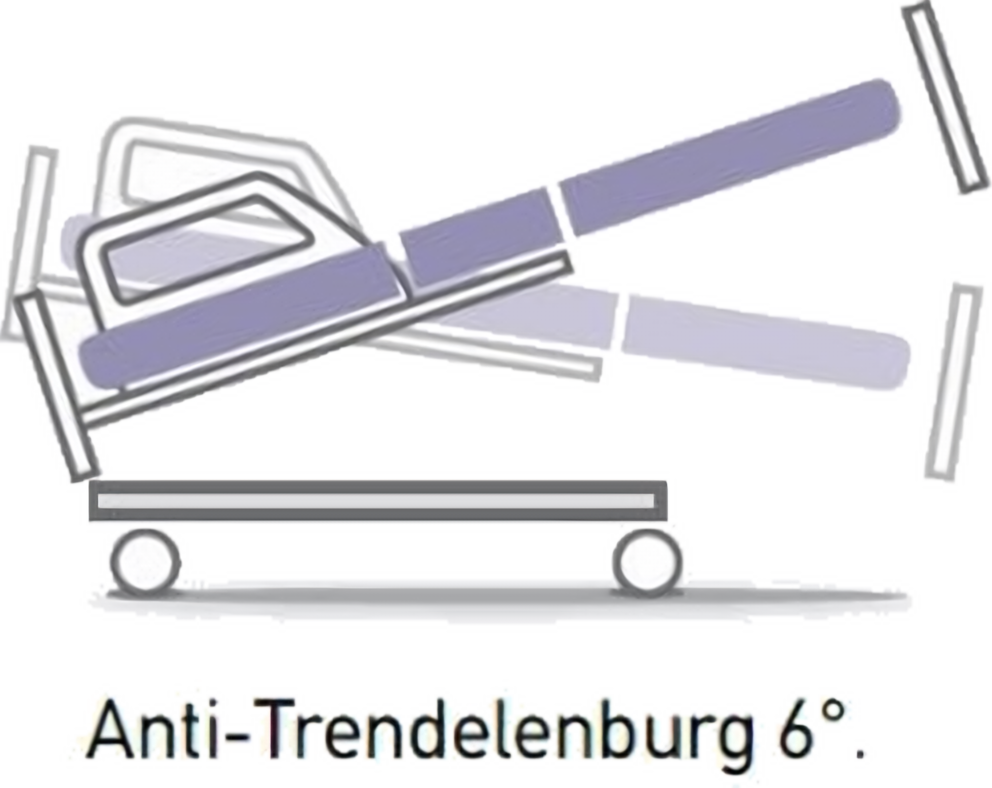

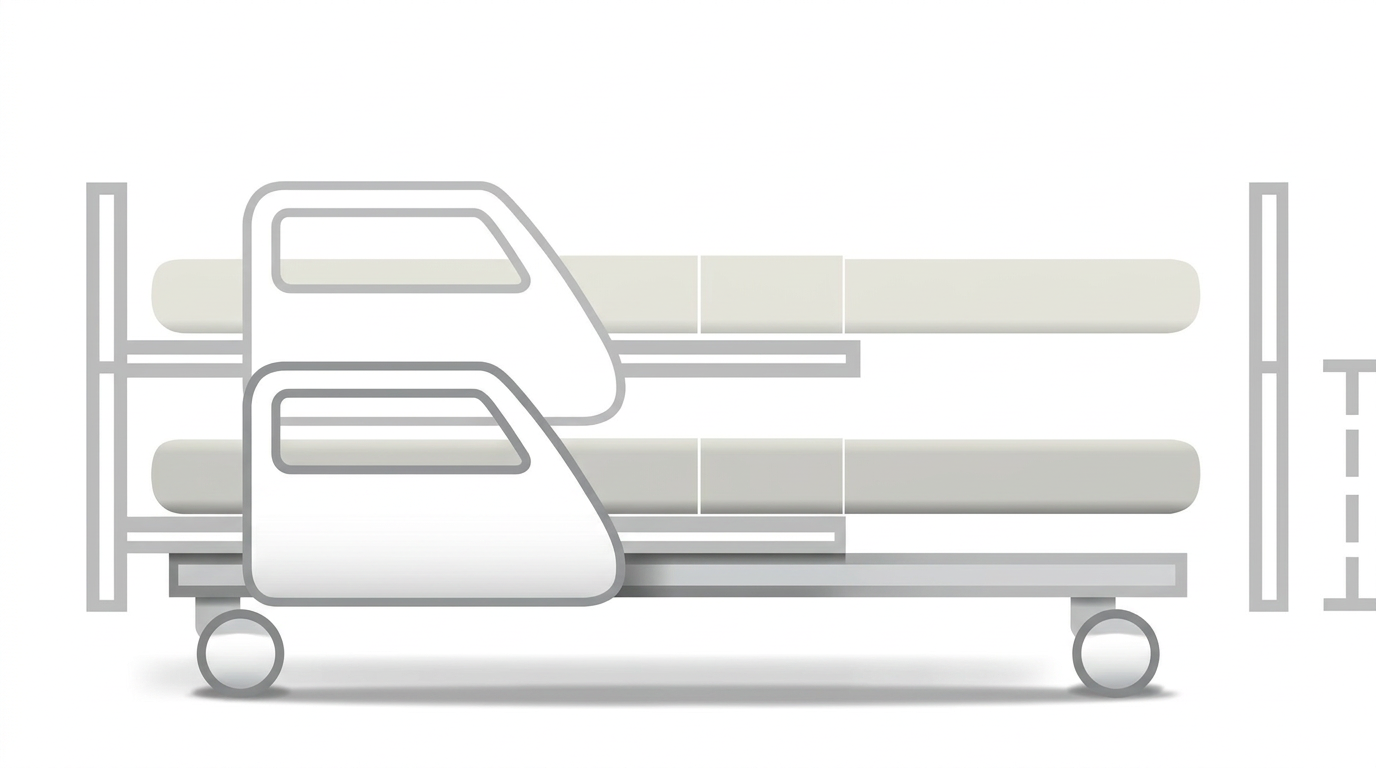

Electric adjustment of bed height, backrest, Trendelenburg and reverse Trendelenburg using a hand controller.

Removable leg section and adjustable Goepel leg supports with forward, backward, height, tilt and rotation adjustments.

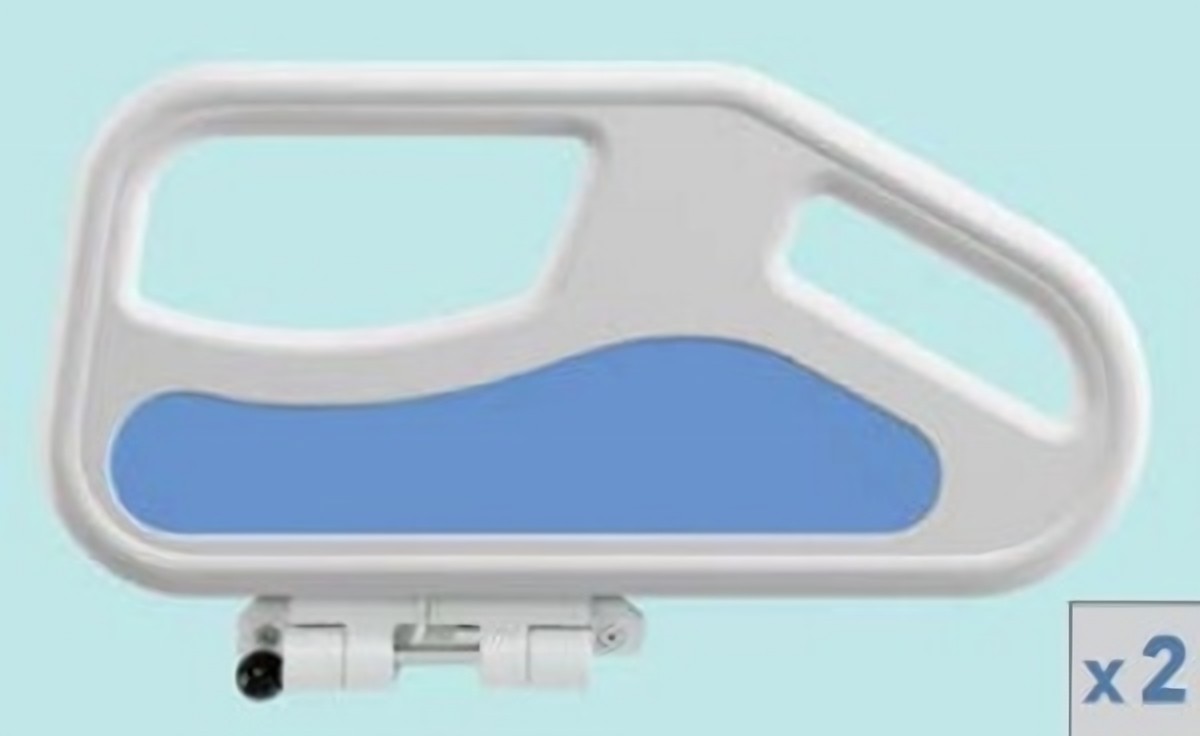

Side rails lower for access and can rotate through 180°.

Foot supports, hand grips, an auxiliary table and a sliding fluid collection tray.

Castors with a locking pedal and two side bumpers for protection during transport.

Radiolucent lying surface for X-ray examinations on the bed.

Standard set

Hand controller

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Foot controller

DIXION DH-C101A05 is a multifunctional delivery bed designed for family-centred childbirth, with a wider lying surface and support for upright, seated, side-lying, squatting and all-fours positions.

Features

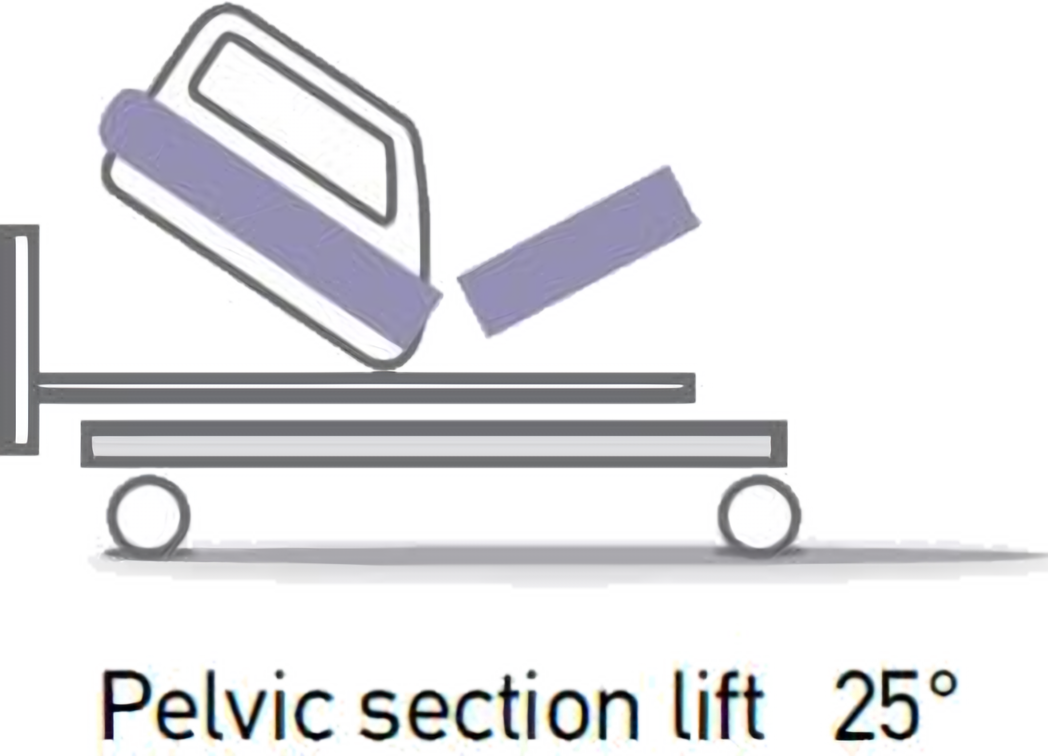

Five electric motors for positioning; electric height, backrest, pelvic section, foot platform and birthing bar adjustment.

The foot platform raises and lowers electrically, rotates through 90° in either direction and can be placed beneath the pelvic section.

Adjustable, removable Goepel leg supports can also be used as arm supports.

Central braking system and built-in backup power with visual and audible indication.

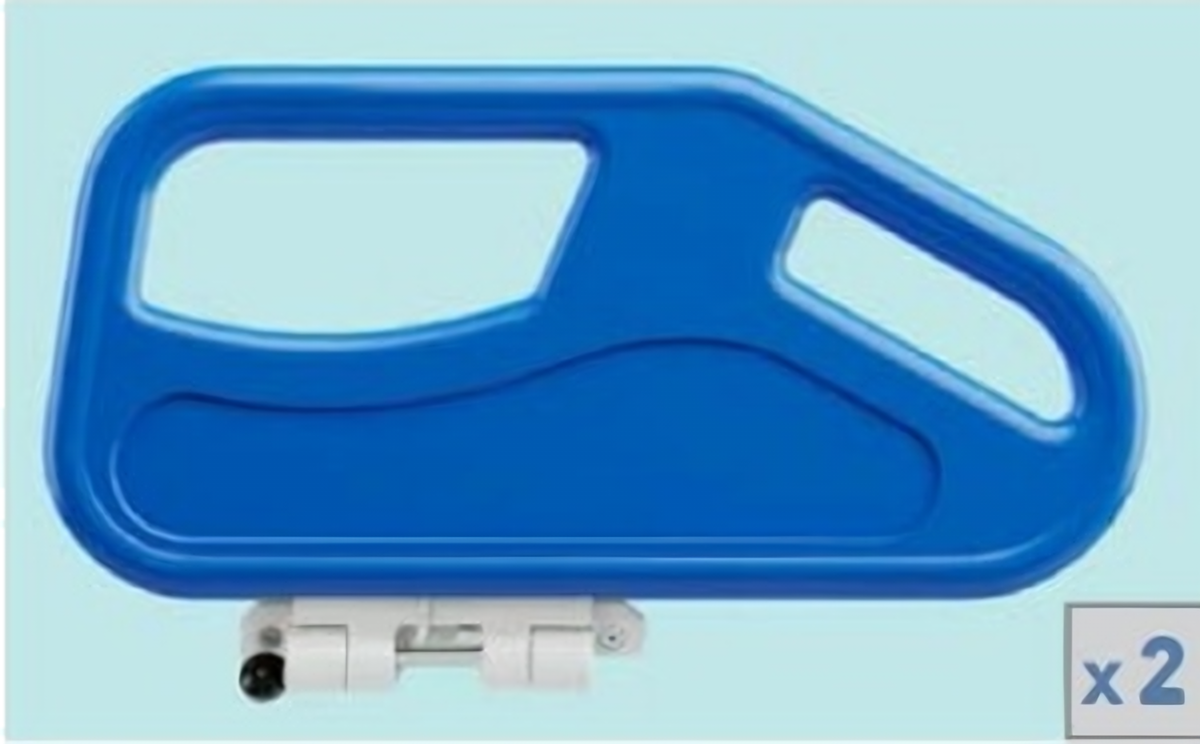

Lowerable high-strength plastic side rails with controls on the outside for staff.

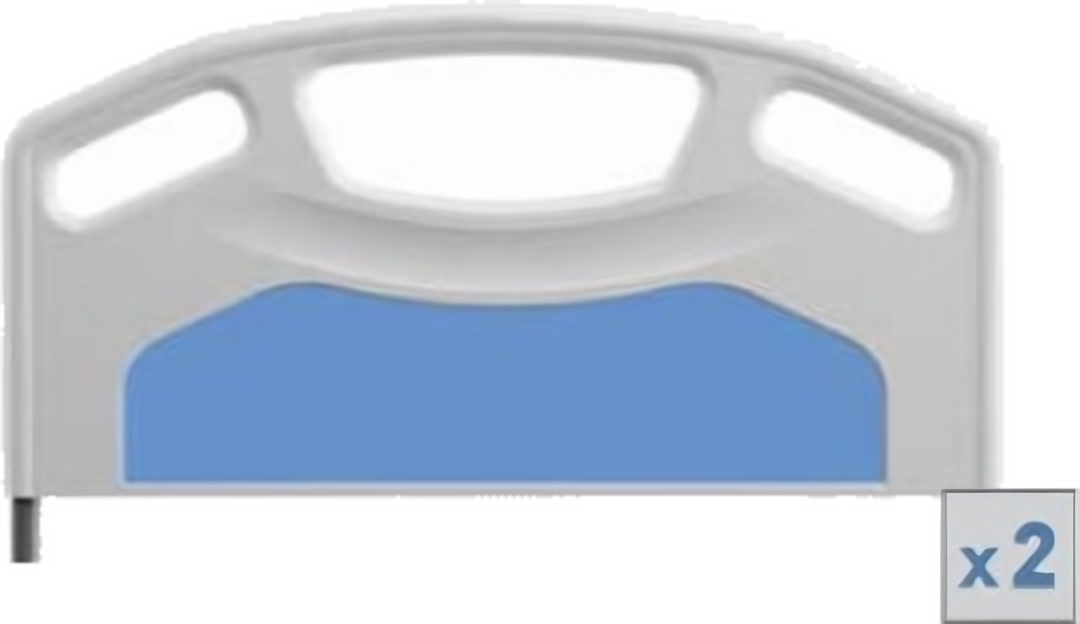

Removable headboard and foot platform for different clinical configurations.

Stainless-steel waste tray stows beneath the pelvic section or rotates through 90° into the delivery position.

Standard set

Side-rail control panel

Goepel leg supports

Birthing bar

Waste tray

Back and pelvic mattress

DIXION DH-C101A06 is a delivery bed with electric positioning, integrated controls, backup power, night lighting and a CPR release for everyday obstetric care.

Features

Electric adjustment of height, backrest and leg-section height, with manual Trendelenburg positioning.

Foot supports rotate horizontally and vertically to suit the procedure.

Controls on the inside and outside of the side rails operate bed positioning, night lighting and the integrated audio system.

Built-in battery maintains electric operation when mains power is unavailable.

CPR handle rapidly returns the bed sections to a horizontal position.

Adjustable foot and Goepel leg supports, removable auxiliary table, fluid collection tray and IV pole.

Standard set

Side-rail control panel

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Waterproof cover
