DIXION Delivery Beds

3-Section height adjustable delivery bed

Heavy duty metal frame, electrostatically painted with epoxy powder.

Fully adjustable legs suppor

Sleeping surface made of ABS.

3 single drives + 1 control unit + 1 patient handset

Mattress with removable cover

Fluid basin

Build in leg section which is easily placed under the bed’s surface

Base / mechanisms cover made of ABS

4 Elastic bumpers

Receptions for IV pole

MOVEMENTS-FUNCTIONS-DIMENSIONS.

Trendelenburg 12°.

Range 380 mm.

Back section 70°.

Lowest height 520-540 mm.

w/ siderails – 1030mm/ 950mm/ 860mm.

RANGE.

OPTIONAL MOVEMENTS.

Anti-Trendelenburg 6°. Optional. in this case the height is increased by 50 mm.

Pelvic section lift 25°.

HEAD/FOOT FRAMES & PANELS.

Plastik frames with internal panel Plastik frames without internal panel.

SIDERAILS FOLLOWING BED’S MOVEMENTS.

Plastic side rails without internal panel Plastic side rails with internal panelOptions:.

Castors

BREAKING SYSTEM – SIMULTANEOUS / ONE OF THEM DIRECTIONAL.

METAL /PLASTIC/ DOUBLE PLASTIC.

DIXION DH-C101A02 is a delivery bed for positioning patients throughout childbirth, obstetric examinations, therapeutic procedures and surgical interventions.

Features

Electric adjustment of bed height, backrest, Trendelenburg and reverse Trendelenburg using a hand controller.

Removable leg section and adjustable Goepel leg supports with forward, backward, height, tilt and rotation adjustments.

Side rails lower for access and can rotate through 180°.

Foot supports, hand grips, an auxiliary table and a sliding fluid collection tray.

Castors with a locking pedal and two side bumpers for protection during transport.

Radiolucent lying surface for X-ray examinations on the bed.

Standard set

Hand controller

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Foot controller

DIXION DH-C101A05 is a multifunctional delivery bed designed for family-centred childbirth, with a wider lying surface and support for upright, seated, side-lying, squatting and all-fours positions.

Features

Five electric motors for positioning; electric height, backrest, pelvic section, foot platform and birthing bar adjustment.

The foot platform raises and lowers electrically, rotates through 90° in either direction and can be placed beneath the pelvic section.

Adjustable, removable Goepel leg supports can also be used as arm supports.

Central braking system and built-in backup power with visual and audible indication.

Lowerable high-strength plastic side rails with controls on the outside for staff.

Removable headboard and foot platform for different clinical configurations.

Stainless-steel waste tray stows beneath the pelvic section or rotates through 90° into the delivery position.

Standard set

Side-rail control panel

Goepel leg supports

Birthing bar

Waste tray

Back and pelvic mattress

DIXION DH-C101A06 is a delivery bed with electric positioning, integrated controls, backup power, night lighting and a CPR release for everyday obstetric care.

Features

Electric adjustment of height, backrest and leg-section height, with manual Trendelenburg positioning.

Foot supports rotate horizontally and vertically to suit the procedure.

Controls on the inside and outside of the side rails operate bed positioning, night lighting and the integrated audio system.

Built-in battery maintains electric operation when mains power is unavailable.

CPR handle rapidly returns the bed sections to a horizontal position.

Adjustable foot and Goepel leg supports, removable auxiliary table, fluid collection tray and IV pole.

Standard set

Side-rail control panel

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Waterproof cover

DIXION DH-C101A07 is a multifunctional delivery bed for maternity hospitals and perinatal centres, supporting labour through the early postpartum period and a range of birthing positions.

Features

Supports supine, side-lying, seated, standing, kneeling, squatting, all-fours and lithotomy positions, including use without the leg section.

Five electric motors adjust bed height, backrest, pelvic section, armrests and Trendelenburg position.

Birthing bar with three height settings; foot platform rotates through 90° in either direction and stows beneath the pelvic section.

The leg section lifts, folds and stows beneath the pelvic section to increase access.

Adjustable Goepel supports can serve as hand supports; armrests lower to the level of the lying surface.

Extra-low starting position and conversion to a chair position.

Electric braking, central castor brakes and backup power with visual and audible indication.

Rapid CPR positioning, reinforced side rails with inner and outer controls, and night lighting in the bed base.

Mattress with a removable waterproof cover, stainless-steel waste tray, removable headboard and leg section.

Standard set

Side-rail control panel

Goepel leg supports

Armrests

Hand grips

Birthing bar

Waste tray

IV pole

Head pillow

DIXION DH-C101A08 is a delivery bed designed for labour and recovery, combining electric positioning with controls for staff and patients, night lighting and an integrated audio system.

Features

Electric adjustment of height, backrest and leg section; manual head-section adjustment and a low starting position.

Pelvic-section lift and Trendelenburg positioning for clinical access.

Anatomically shaped, non-slip Goepel leg supports and adjustable hand grips.

Split lifting side rails, central braking and a quick-release CPR mechanism.

Removable headboard, night lighting around the bed and floor, and an integrated audio system.

Dual-sided controls for staff and patients, an integrated foot pedal for height adjustment and protection against accidental activation.

Bluetooth connectivity for remote positioning and LINAK linear actuators from Denmark.

Memory-foam mattress with a seamless, waterproof, breathable cover.

Standard set

Foot controller

Side-rail control panel

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Gel mattress

The DIXION Partus 5988 supports labour, delivery and recovery in one bed, with electric positioning, leg supports and handle-mounted controls.

Key features

Electric adjustment of bed positions

Leg supports

Control panels on the patient handles

Central-locking castors

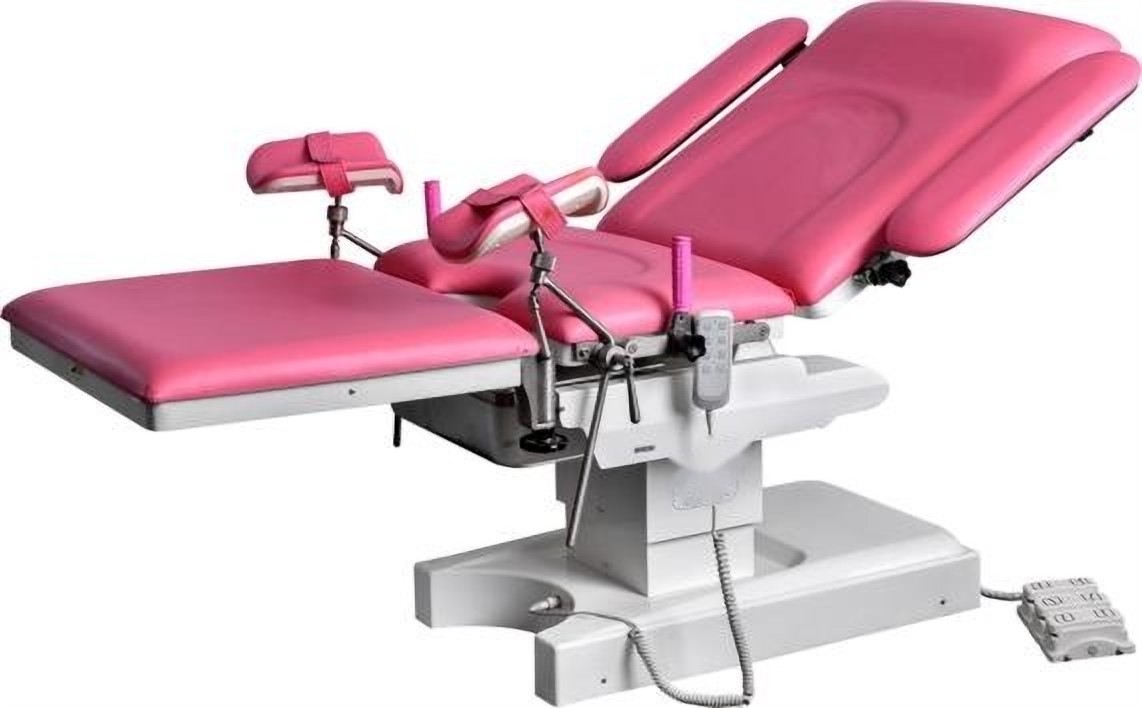

The DIXION Partus 5997 is built for delivery rooms; its height range is 630–880 mm and the leg section swings out to 90°.

Key features

Foot pedal control

Hand control

Anaesthesia screen

Hand grips, 1 pair

Padded leg supports, 1 pair

Padded arm supports, 1 pair

Stainless steel basin

Castor

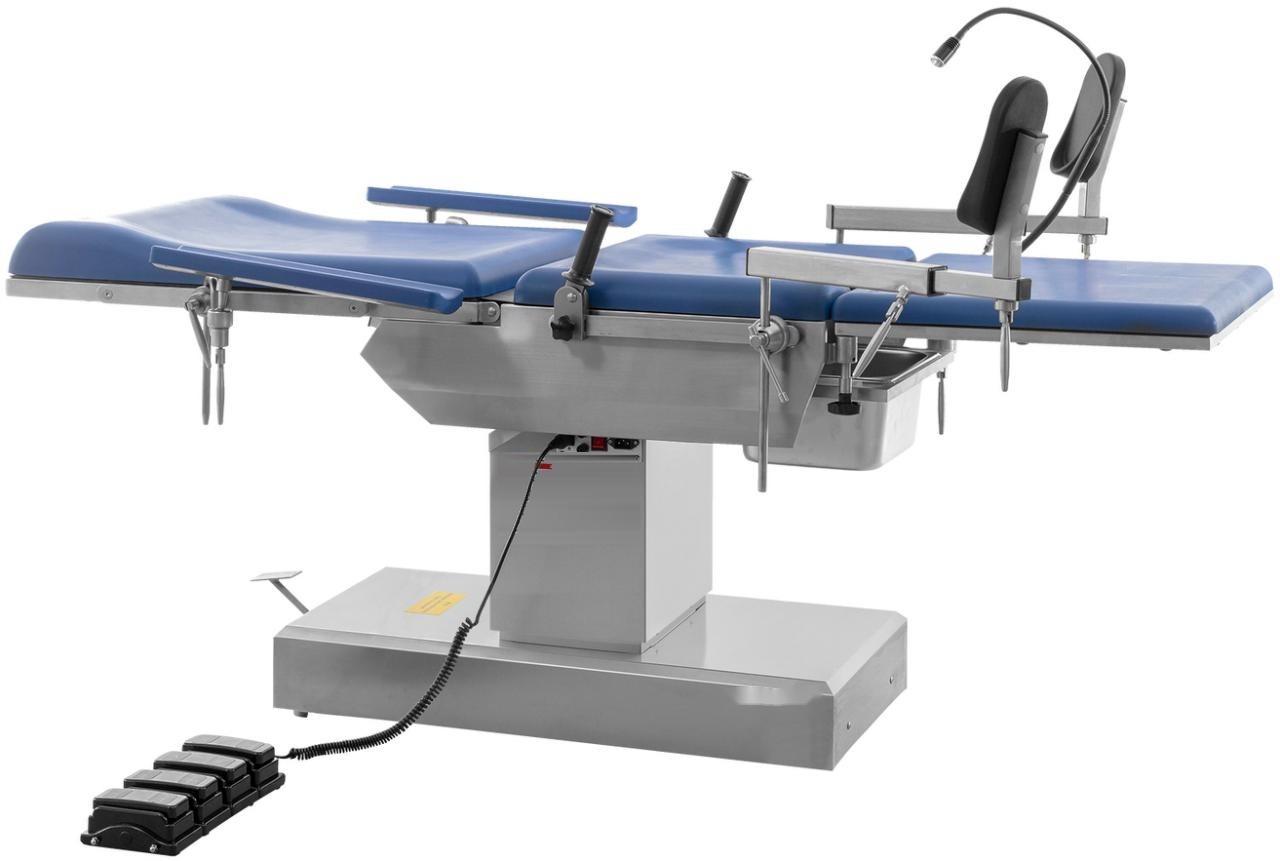

The DIXION Partus 5913 adjusts its height from 750 to 1000 mm and tilts to at least 22° in both Trendelenburg directions.

Key features

Armrests, 1 pair

Knee crutches, 1 pair

Pull handles, 1 pair

Anaesthesia frame

Stainless steel basin

Foot pedal control

LED examination light

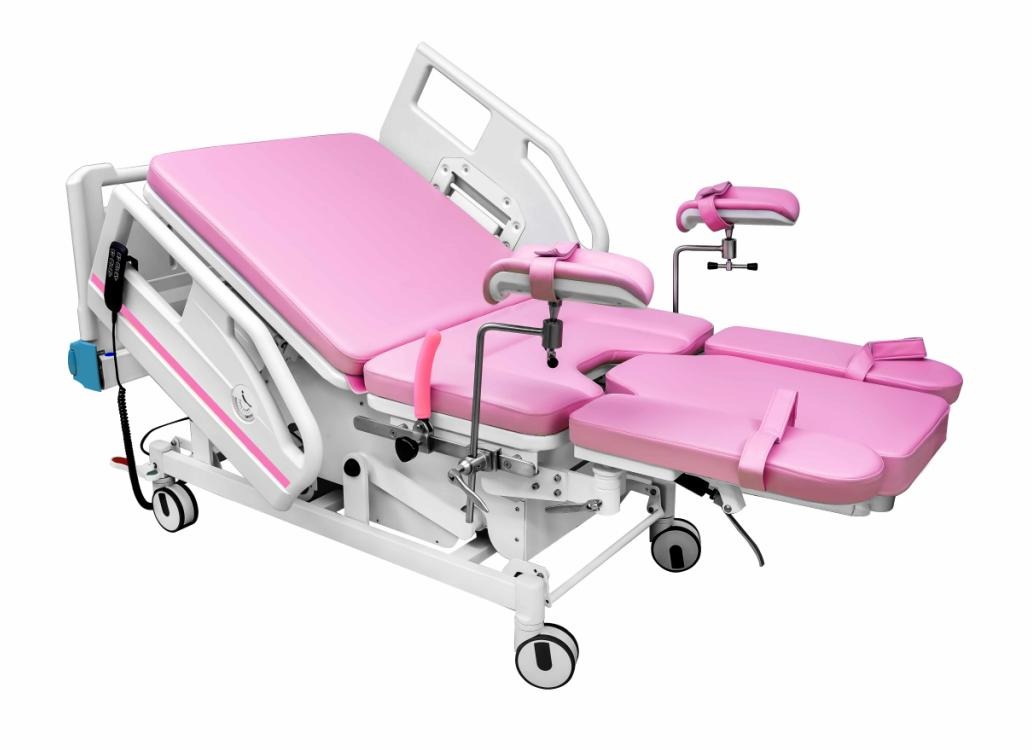

The DIXION Partus 5984 serves labour, delivery and recovery in one bed; its height range is 650–940 mm and it carries up to 200 kg.

Key features

3 linear motors

4 double castors of 5 in with central locking

2 central locking pedals

ABS head board with safety lock

ABS side rails with angle indicator

Hand grips, 1 pair

Leg holders, 1 pair

Stainless steel basin

Hand control

Power cable

Leg straps, 1 pair

2 IV pole sockets

Removable leg section
