Medical imaging

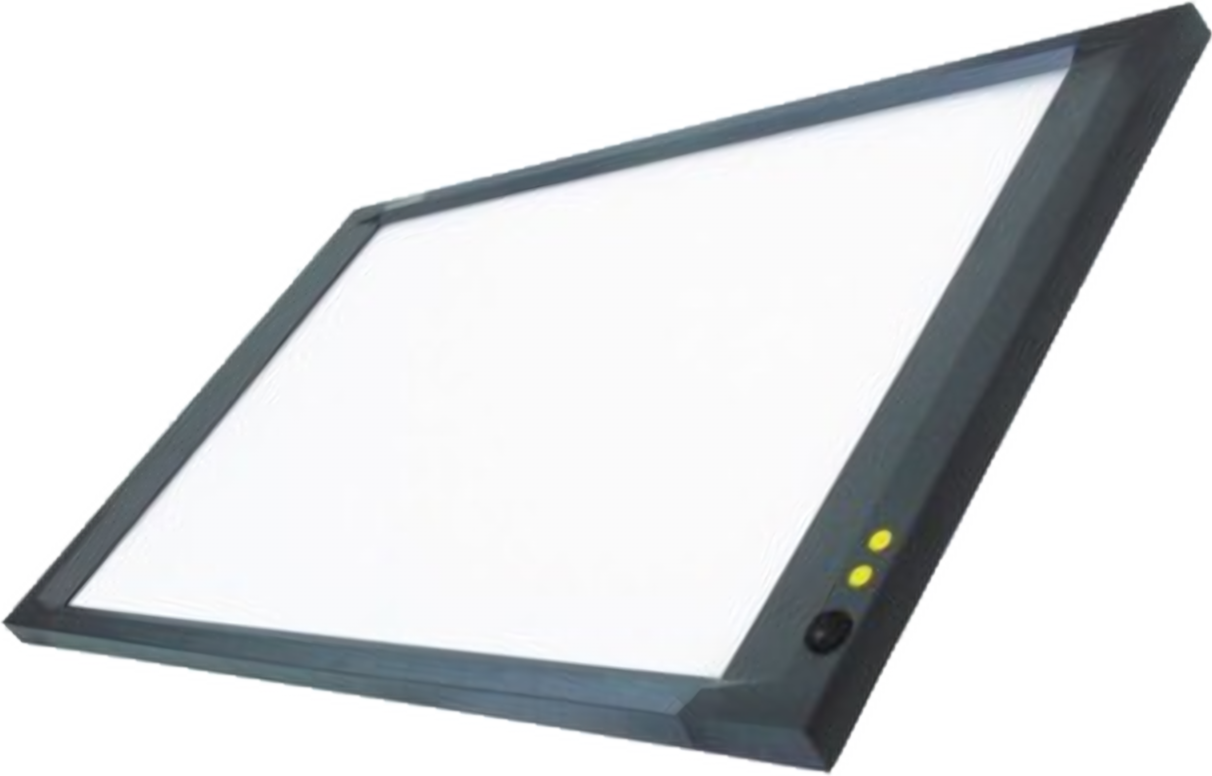

Modern LED-based X-ray viewer. LED technology doubles the brightness of the viewing screen comparing to CCFL-based lamps – up to 4 000 Cd/m2. Five times longer uptime – 100 000 hours.

Implementation of brand new technologies.

The implementation of brand new technologies allows us to reduce the width of the entire construction by 2,4 cm, which makes it space-saving and easy to install.

The implementation of progressive LED technology in the model type X-View LED significantly raises comfort and quality of diagnostics.

Improved system of image fixation.

Automatically closing rolling holders allow the doctor to fix and take out images easily.

Flawless design of the light diffuser channel.

Equal distribution of light enhances picture resolution.

Extra-long operating life.

The operating life of LED light source is 100 000 hours, which means the device can operate for 50 years 8 hours a day.

No eye fatigue effect. The LEDs stand out for their absolute non-flicker effect, which allows the doctor to make the process of diagnosis most comfortable all working day long.

Optimal color temperature.

The light source in the model type X-View LED has a color temperature of more than 10 000° K, which enhances an accurate perception of images.

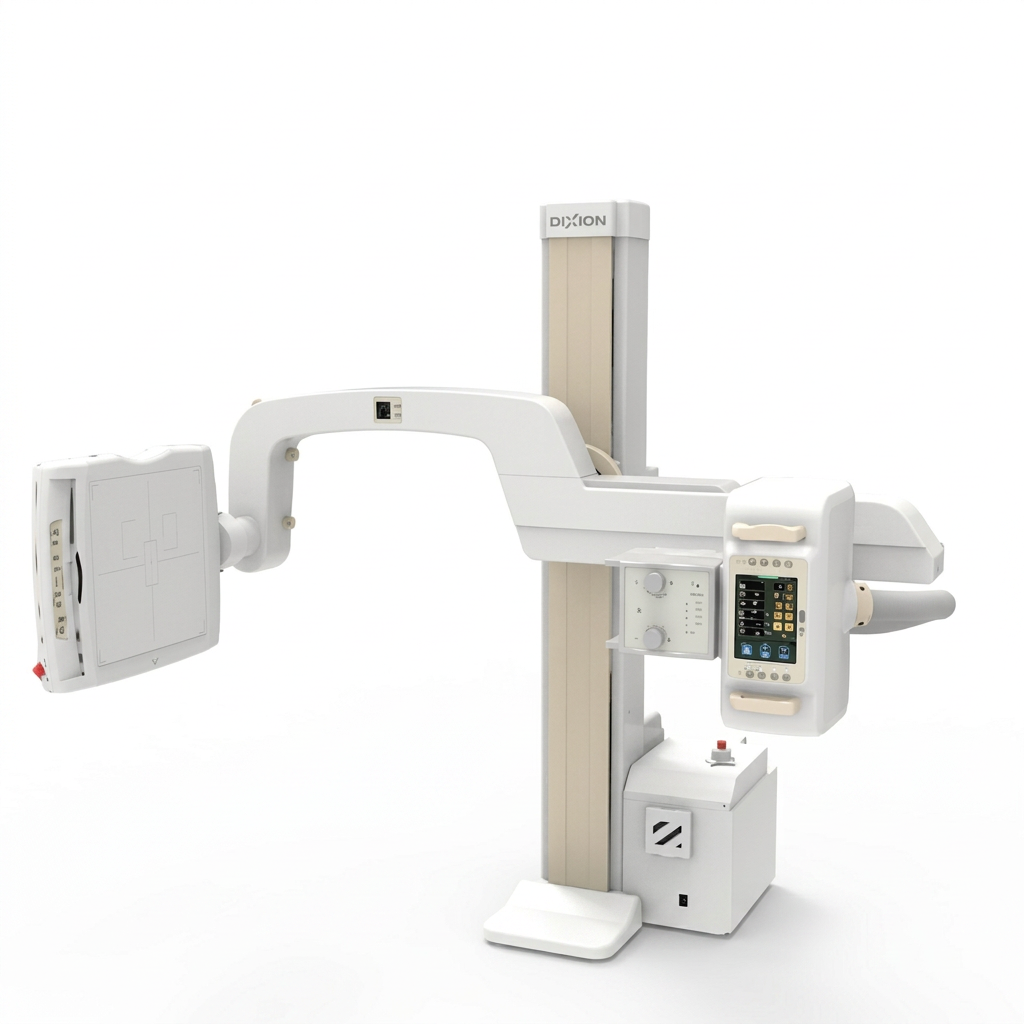

Diamond is a fully automatic DR system providing the whole range of diagnostic radiographic studies given the moderate budget and limited spaces.

Diamond is a fully automatic DR system providing the whole range of diagnostic radiographic studies given the moderate budget and limited spaces. Outstanding image quality based on digital flat-panel detector and digital image processing is optimized for each projection. Operator can easily control the radiographic techniques and stand positioning via the integrated touch screen console located in the tube side. Furthermore, operator can manage the digital x-ray image on this screen. The GUI of integrated touch screen console automatically rotates according to the rotation angle of U-ARM.

Main Features

CsI (Cesium Iodide) screen features 20% lower dose than GOS screen

Trustworthy x-ray source: High quality x-ray tube assembly and high frequency x-ray generator

Automatic motorized radiographic stand, remote controller, mobile patient table

Motorized collimator automatically controls x-ray field size and corresponds to various SID

Two removable high resolution grids and AEC sensor are included to the standard specification

Adopted touch screen graphic interfaces at radiographic stand controller and x-ray controller

Imaging software with convenient user interface and various functions

DICOM 3.0 networking interface includes Worklist, Print, Store and Query for integration with any PACS or RIS

By selecting the anatomical zone in the imaging software the study parameters are set automatically

Pre-programmed exposure technique setting of x-ray generator

Automatic radiographic stand positioning

Automatic x-ray collimation

Digital image processing for selected studies

Seamless Work Flow is provided by the fully automatic motorized movement

Ergonomic and convenient control

Safety sensor protects patient and operator against moving U-arm

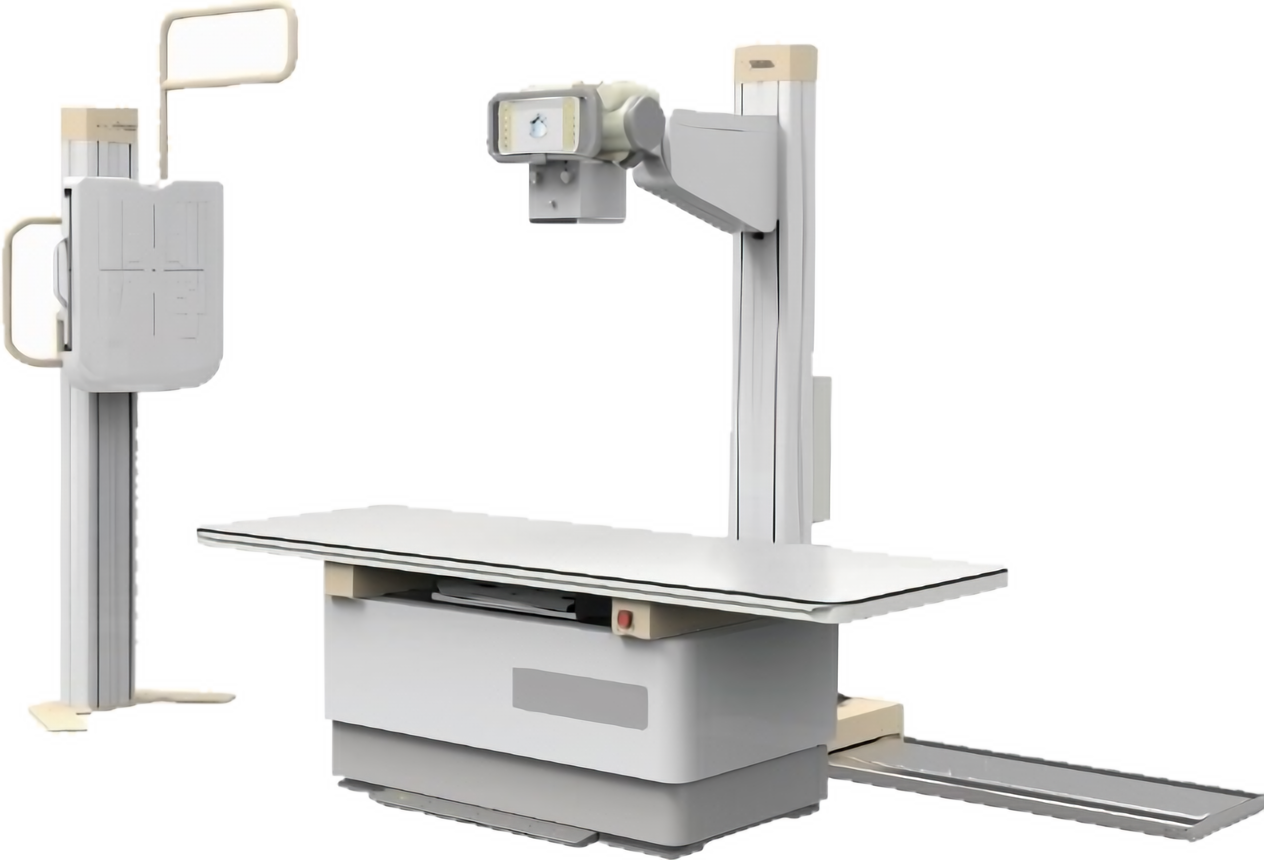

Dixion Redikom is a diagnostic x-ray system that was designed for diagnosis of human body by acquiring of radiographic x-ray image with anatomical structure.

It consists of a combination of high quality x-ray generator, and associated equipment such as tube stand, patient table, bucky stand.

The control console allows an operator to select the technique factors, image receptors, etc., and to initiate an X-ray exposure. Tube stand and patient table allows an operator to position the patient.

Main features

High frequency X-ray generator provides excellent accuracy, efficiency and long-term stability. Short time of kV rising minimizes the needless extra radiation dose and provides a superior image quality.

The operator control console is designed in a simple and user-friendly way, the operator can select or change x-ray parameters easily using a PC.

Smaller, lighter and convenient module design and user-friendly system configuration

The APR (Anatomical Programming) and the optional AEC (Automatic Exposure Control) enable to control exposure techniques that are automatically optimized for the radiological study selected.

Automatic Calibration function minimizes calibration time and sets correct calibration value.

Control console offers a graphic and numeric display of exposure techniques.

Automatic adjustment of calibration settings based on the radiological study selected

The information of the system condition, existing failures can be obtained as well as the system adjustment can be performed.

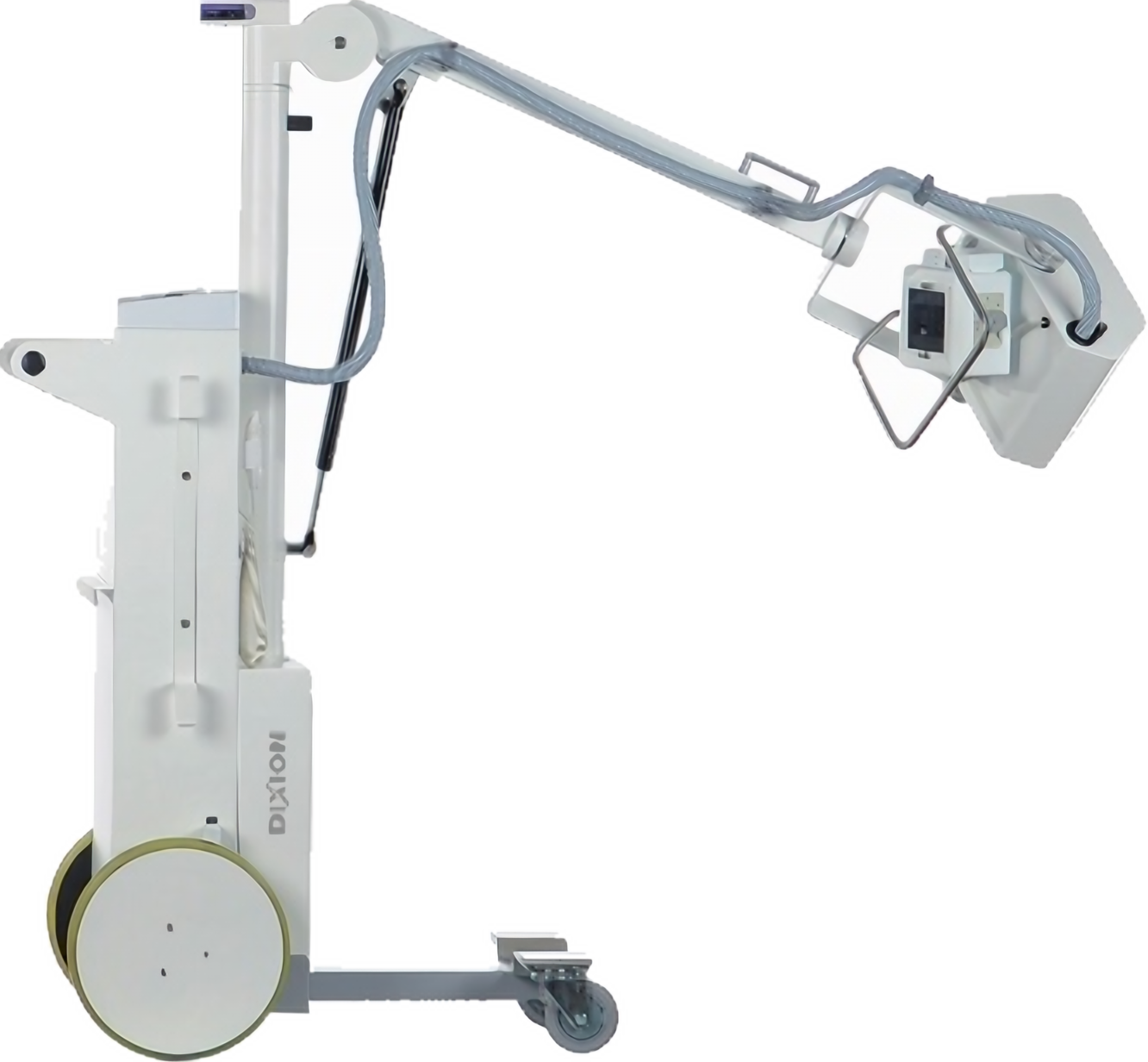

Dixion Remodix is an affordable high frequency mobile X-ray system, designed for clinics or hospitals with moderate budget.

Dixion Remodix 9507 is an affordable high frequency mobile X-ray system, designed for clinics or hospitals with moderate budget.

Smooth movement of the system enables to easily take any suitable radiographic position.

Thanks to the Anatomical Programming Radiography function, the operator can select an optimal exposure parameters by pressing the button.

The front of the system can be lifted slightly by pressing the foot bar, so that the system can easily cross over uneven floor at the entrance or at the elevator.

Even overweight patients can be exposed in Abdomen & L.Spine projections.

It’s compact, lightweight construction can be easily transported by the Operator.

Main Features

High Frequency Inverter System for more compact and efficient X-ray

Smallest and Lightest weight

Smooth movement and compact design

Advanced Safety and Operation

Easy Radiographic Positioning of the stand

Infrared remote control

Can be used on conventional electricity system 220V.
