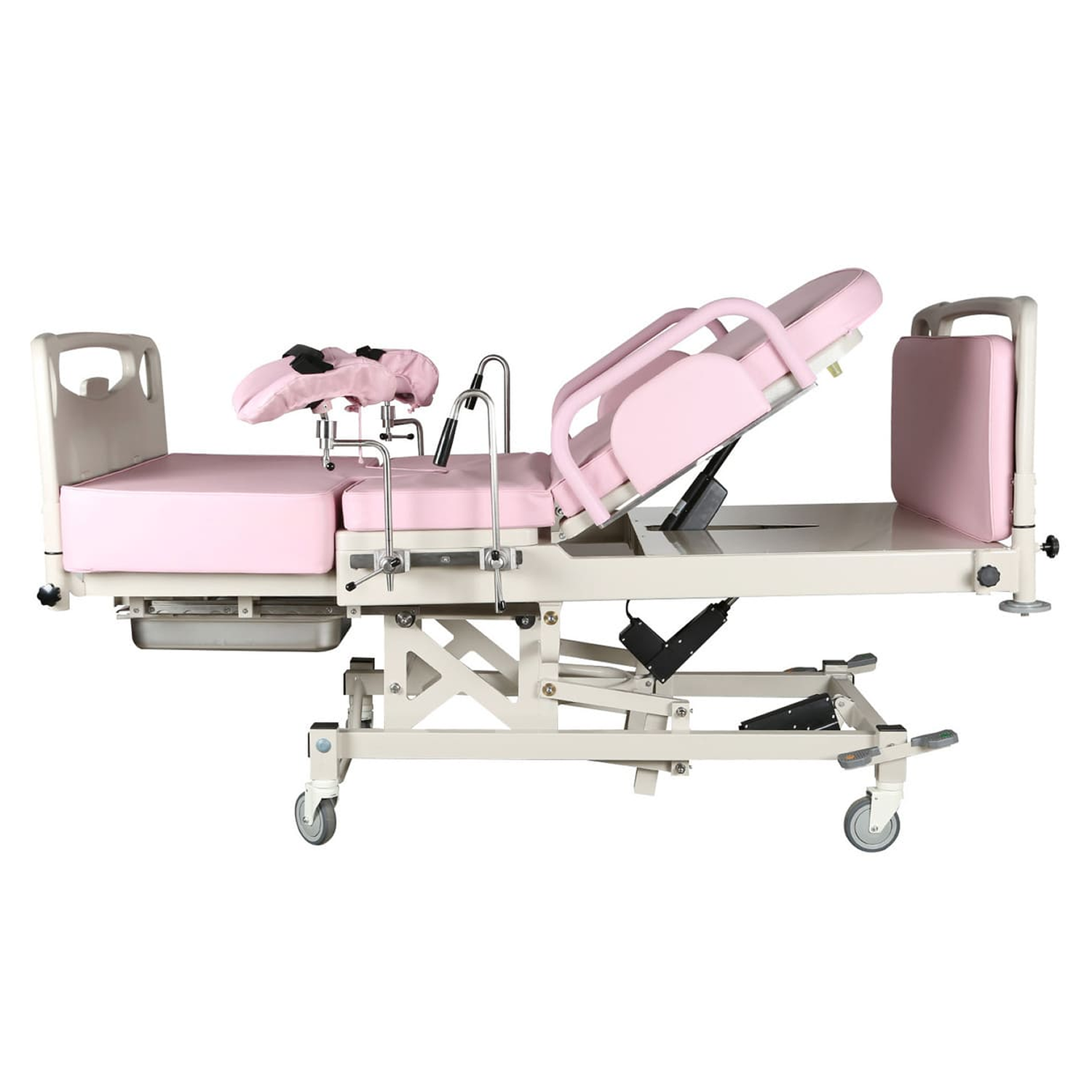

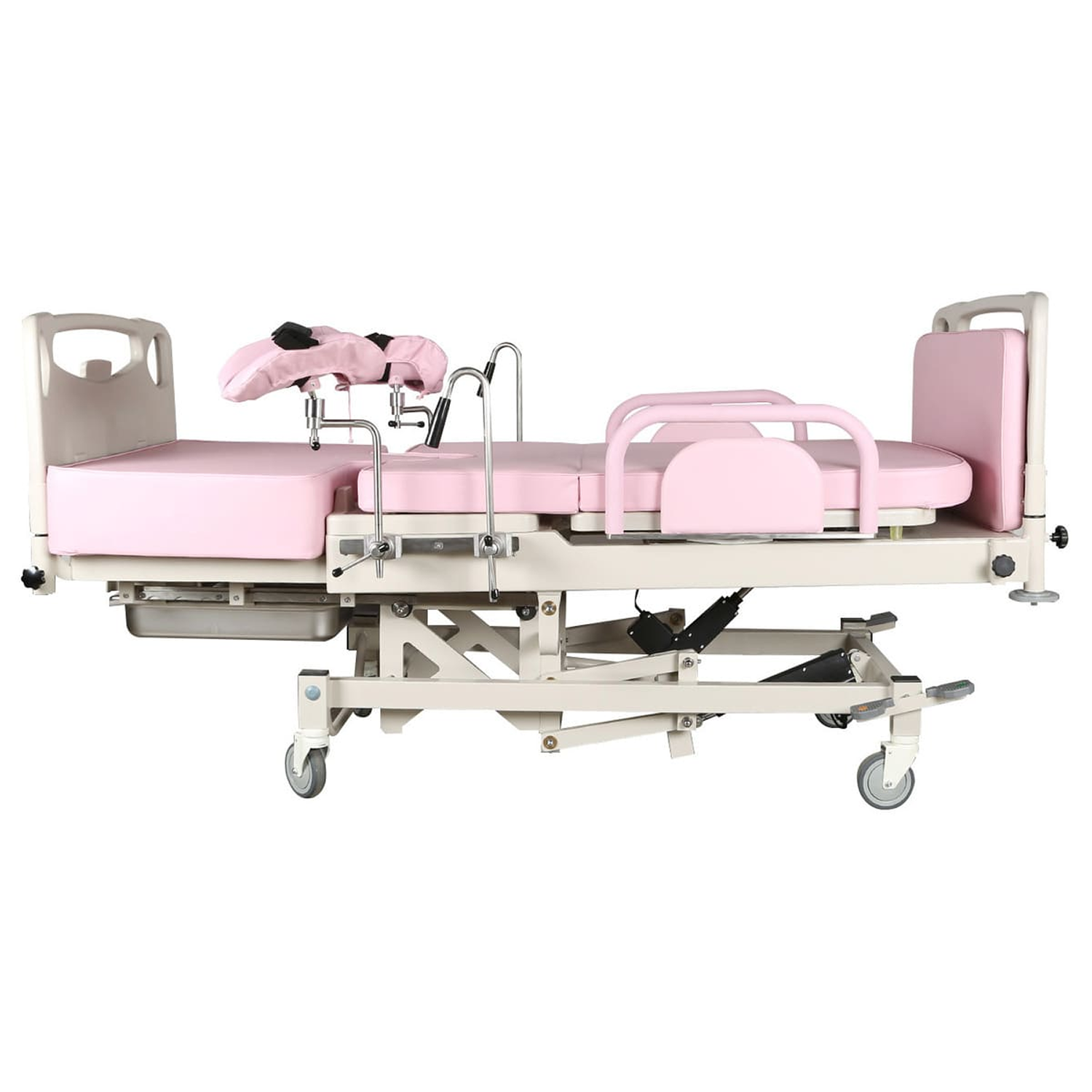

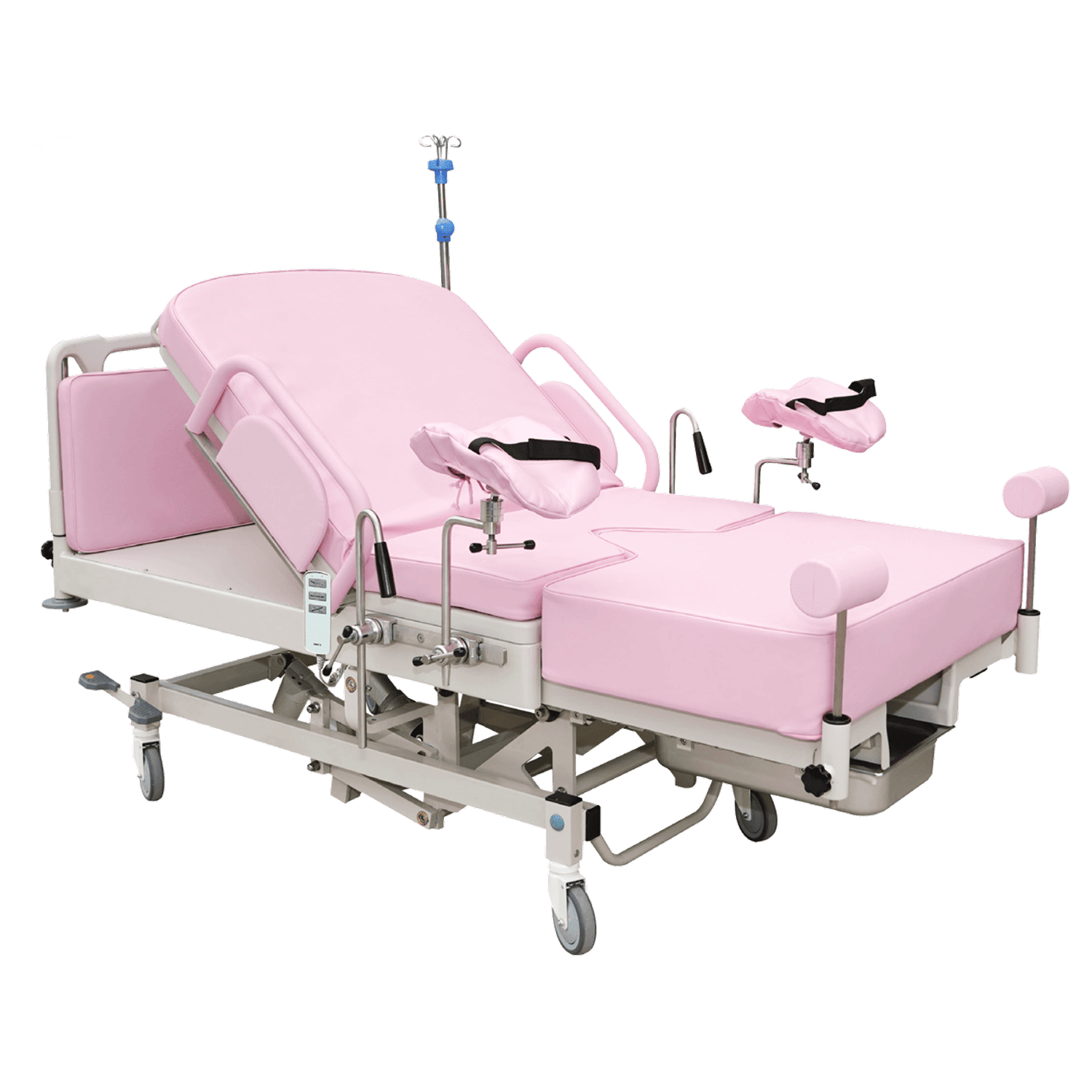

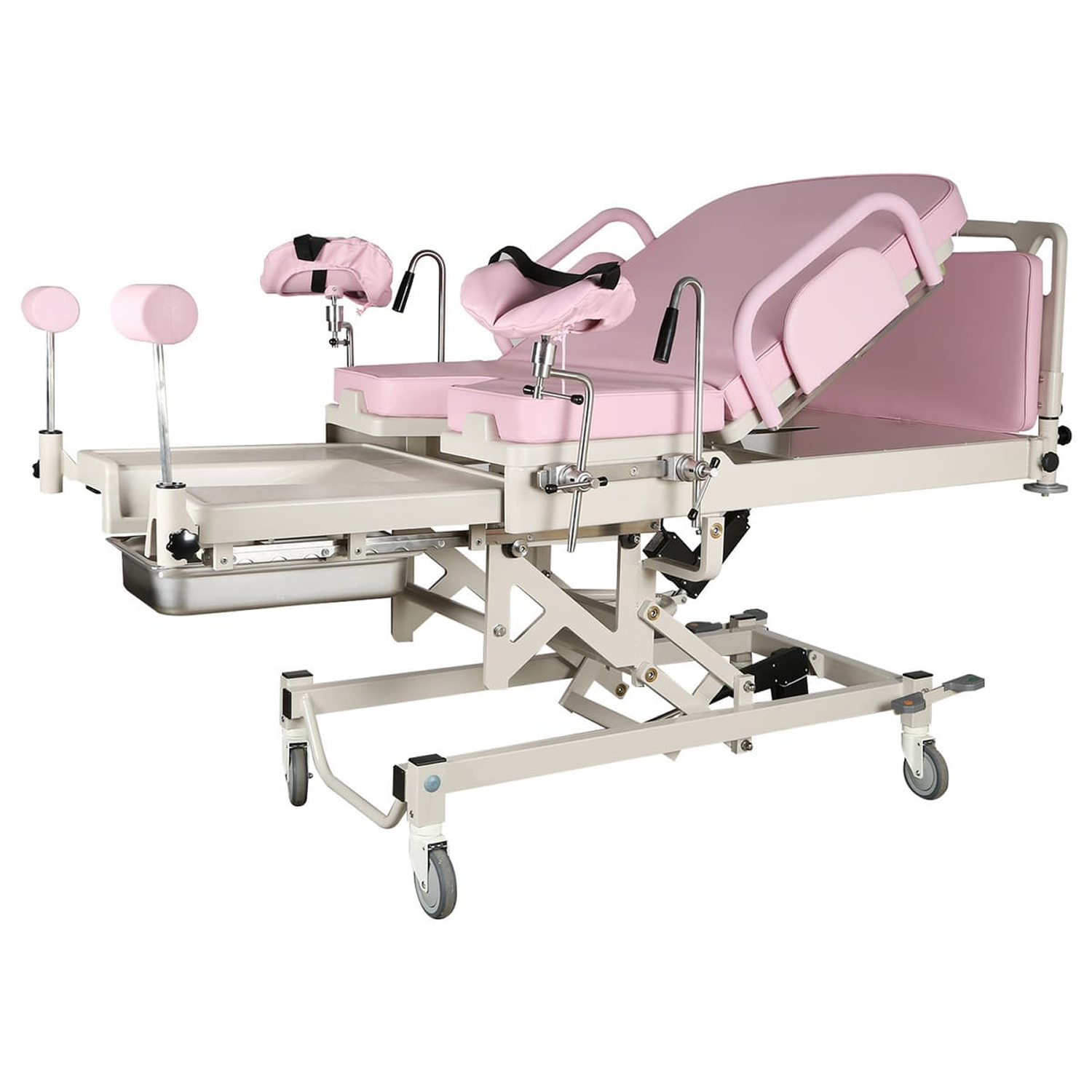

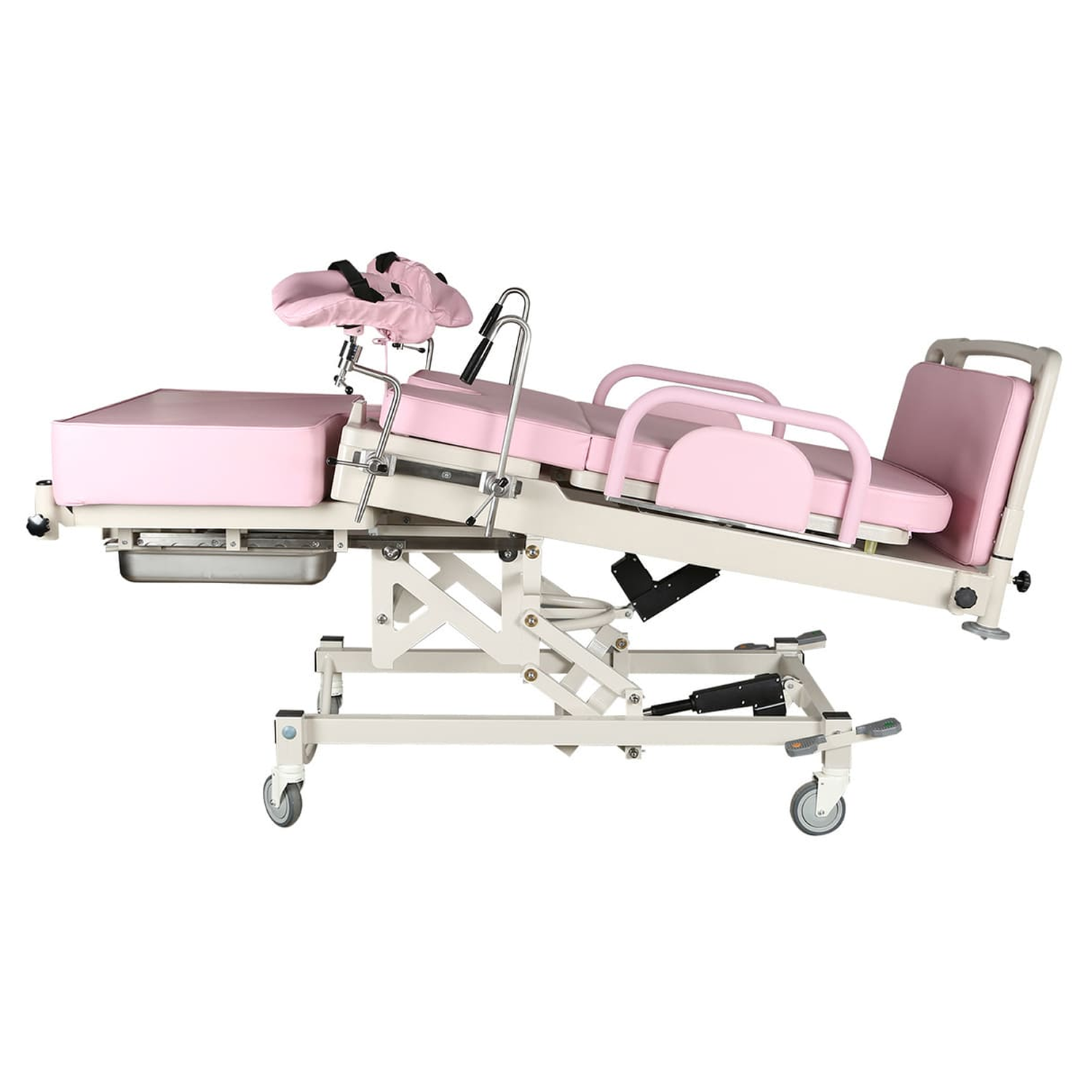

Delivery Bed DIXION DH-C101A02

3-Section height adjustable delivery bed

Heavy duty metal frame, electrostatically painted with epoxy powder.

Fully adjustable legs suppor

Sleeping surface made of ABS.

3 single drives + 1 control unit + 1 patient handset

Mattress with removable cover

Fluid basin

Build in leg section which is easily placed under the bed’s surface

Base / mechanisms cover made of ABS

4 Elastic bumpers

Receptions for IV pole

MOVEMENTS-FUNCTIONS-DIMENSIONS.

Trendelenburg 12°.

Range 380 mm.

Back section 70°.

Lowest height 520-540 mm.

w/ siderails – 1030mm/ 950mm/ 860mm.

RANGE.

OPTIONAL MOVEMENTS.

Anti-Trendelenburg 6°. Optional. in this case the height is increased by 50 mm.

Pelvic section lift 25°.

HEAD/FOOT FRAMES & PANELS.

Plastik frames with internal panel Plastik frames without internal panel.

SIDERAILS FOLLOWING BED’S MOVEMENTS.

Plastic side rails without internal panel Plastic side rails with internal panelOptions:.

Castors

BREAKING SYSTEM – SIMULTANEOUS / ONE OF THEM DIRECTIONAL.

METAL /PLASTIC/ DOUBLE PLASTIC.

DIXION DH-C101A05 is a multifunctional delivery bed designed for family-centred childbirth, with a wider lying surface and support for upright, seated, side-lying, squatting and all-fours positions.

Features

Five electric motors for positioning; electric height, backrest, pelvic section, foot platform and birthing bar adjustment.

The foot platform raises and lowers electrically, rotates through 90° in either direction and can be placed beneath the pelvic section.

Adjustable, removable Goepel leg supports can also be used as arm supports.

Central braking system and built-in backup power with visual and audible indication.

Lowerable high-strength plastic side rails with controls on the outside for staff.

Removable headboard and foot platform for different clinical configurations.

Stainless-steel waste tray stows beneath the pelvic section or rotates through 90° into the delivery position.

Standard set

Side-rail control panel

Goepel leg supports

Birthing bar

Waste tray

Back and pelvic mattress

DIXION DH-C101A06 is a delivery bed with electric positioning, integrated controls, backup power, night lighting and a CPR release for everyday obstetric care.

Features

Electric adjustment of height, backrest and leg-section height, with manual Trendelenburg positioning.

Foot supports rotate horizontally and vertically to suit the procedure.

Controls on the inside and outside of the side rails operate bed positioning, night lighting and the integrated audio system.

Built-in battery maintains electric operation when mains power is unavailable.

CPR handle rapidly returns the bed sections to a horizontal position.

Adjustable foot and Goepel leg supports, removable auxiliary table, fluid collection tray and IV pole.

Standard set

Side-rail control panel

Goepel leg supports

Hand grips

Auxiliary table

Waste tray

IV pole

Options

Waterproof cover
