DIXION MEDICAL EQUIPMENT

Emergency Suction Pump DIXION Vacus 7305

Suction Pumps

Product information

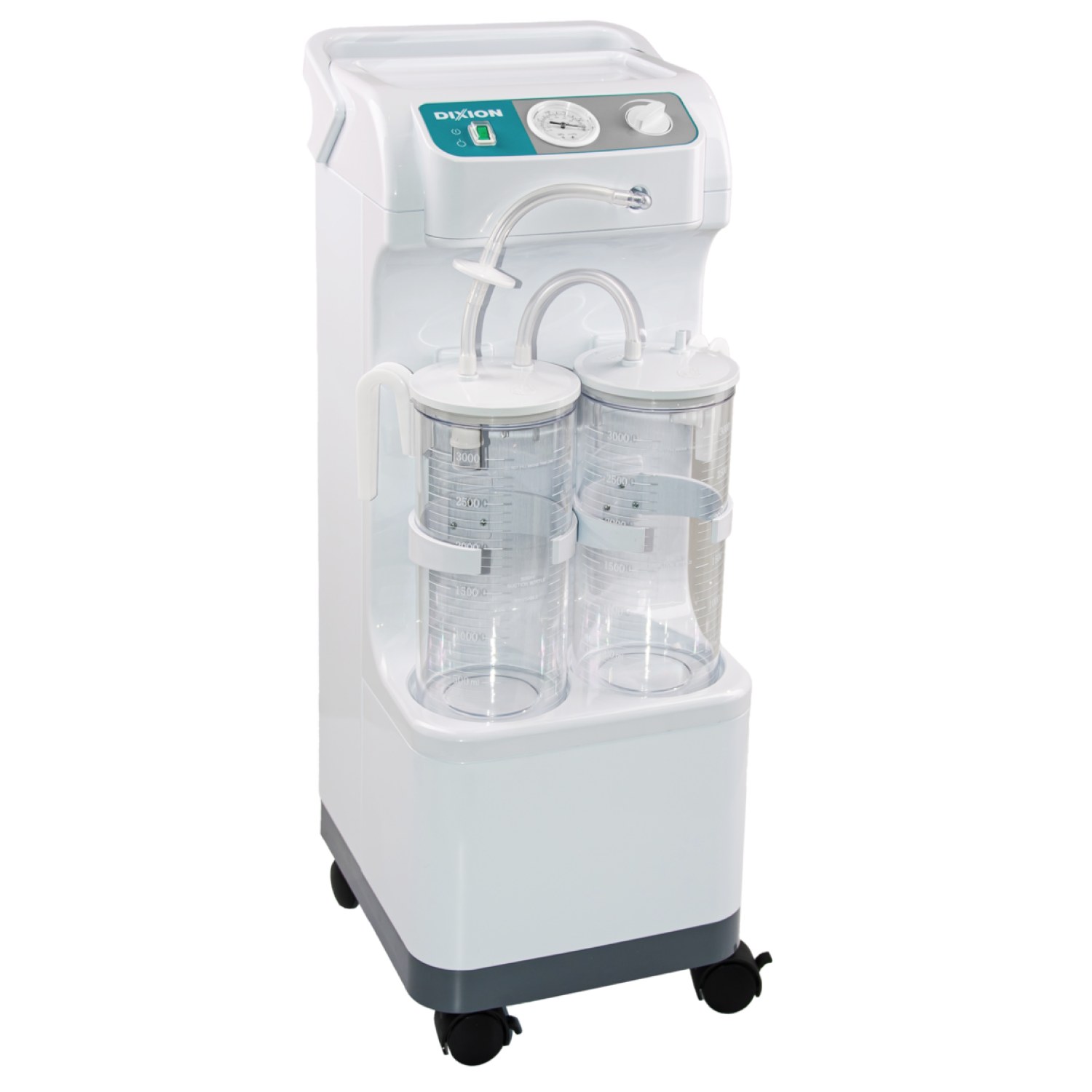

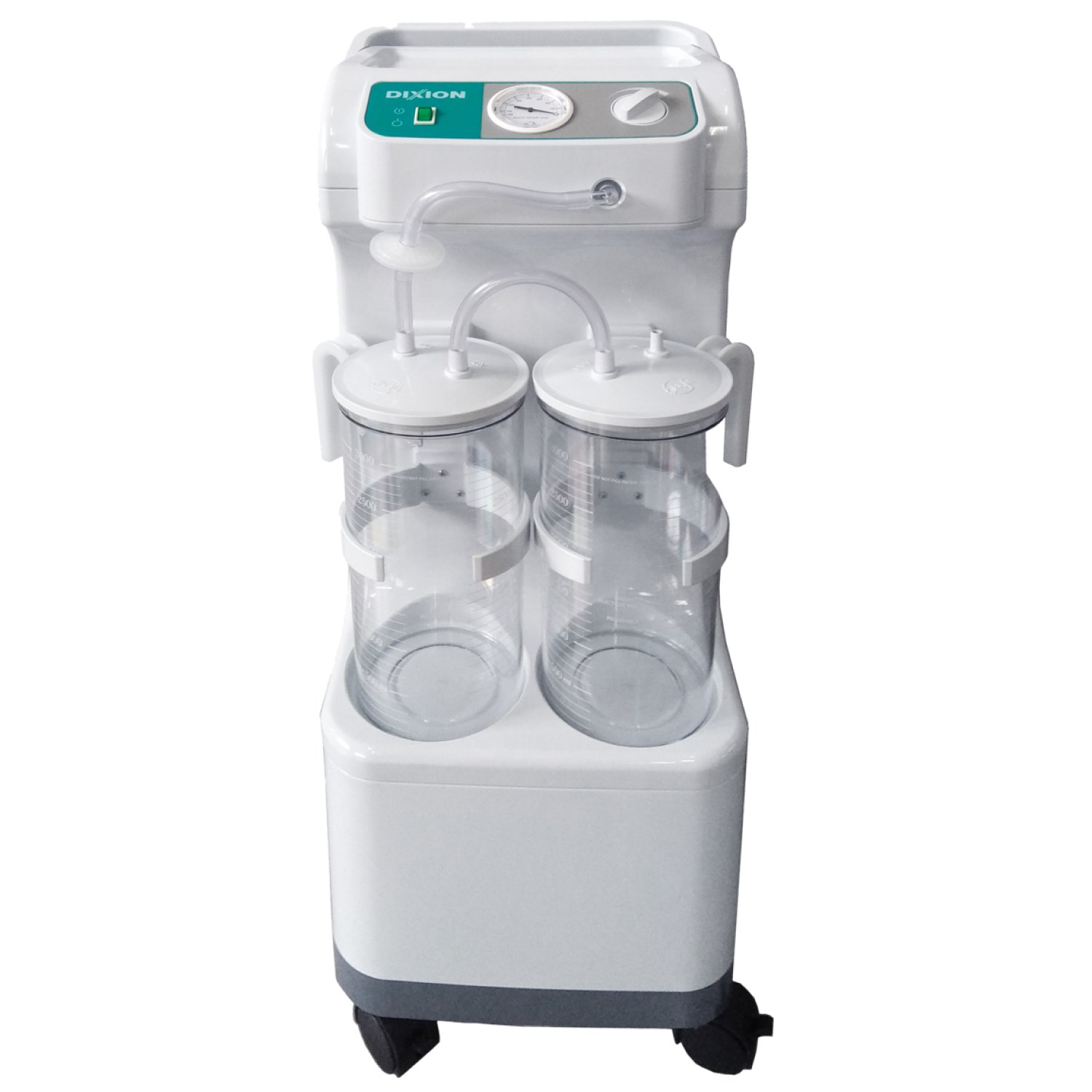

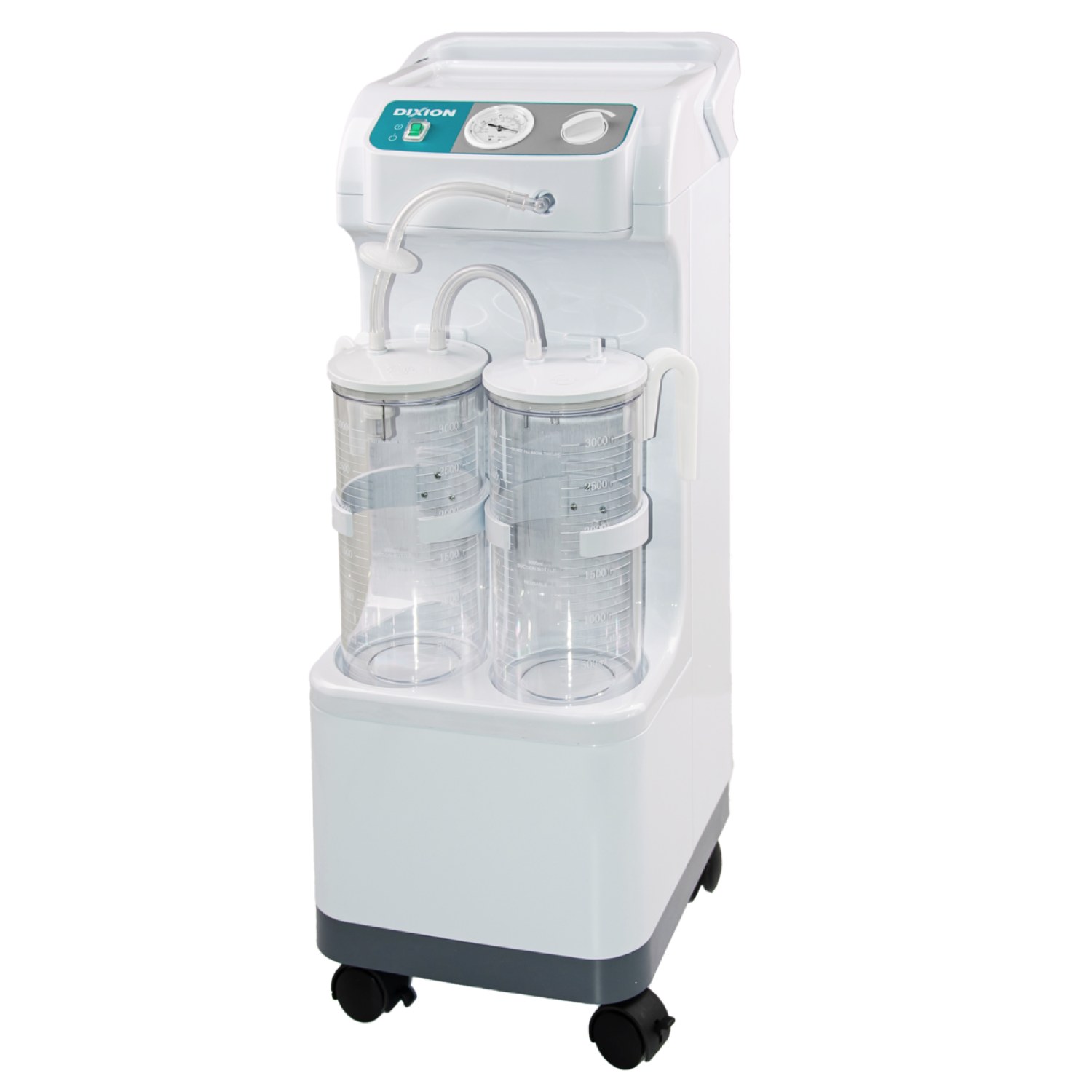

The model Vacus 7305 is a trolley-style high-vacuum and high-flow medical suction unit. Vacus 7305, which absorbs the mucus rapidly from the body-cavity or the wound, is widely used in the in-patient department, particularly in operation rooms.

Features

  • Oil-less vacuum source requires no maintenance.
  • Capacious storage bottles made of high-quality plastic and equipped with a joint ring are easy to access, use and clean.
  • The suction bottles shall come with over flow lid.
  • Overflow protection device prevents the liquid from entering the pump.
  • Hoses made of non-toxic glass like polymer are easy to use and clean.
  • Air filter reduces contamination of the environment.
  • The device is controlled by the integrated regulator and the footswitch.
  • Air discharge from pump shall be filtered by bacterial filter.
  • Twin unbreakable, transparent, autoclavable polyulfide suction bottles (OPTION).
  • The bottles shall be incorporated with an automatic suction cut-off mechanism when they become full (OPTION).
  • Low noise
  • Long-term use
  • Safe and reliable
Specification
Adjustable vacuum range0.02 MPa – 0.09 MPa (150 – 680 mmHg)
Flow rate≤ 40 l/min
Noise≤ 60 dB
Storage bottle2500 ml x 2 glass pcs
Power supply220 – 230 V, 50 – 60 Hz
Input250 VA
Weight19 kg
Size320 x 330 x 700 mm
