Stretchers

The Portus Stretcher enables to give first aid quickly and efficiently in several situations. The bed ensures safety for the patient and facilitates the work of the medical staff.

Features

Operations: the stretcher is very easy to operate and can be put in

its desired position in no time – (Reverse) Trendelenburg (option),

seating position, high/low position

X-ray permeable mattress platform

The maintenance-free hydraulic pump and gas spring make this

stretcher a durable investment

The push handles guarantee that the stretcher can be moved

ergonomically

Options

Fixed height

Adjustable height

Accessories

Fixation rail

IV stand

Sideguards

Hygienic cover cap

5th castor

Oxygen bottle holder

X-ray cassette holder

Comfort mattress

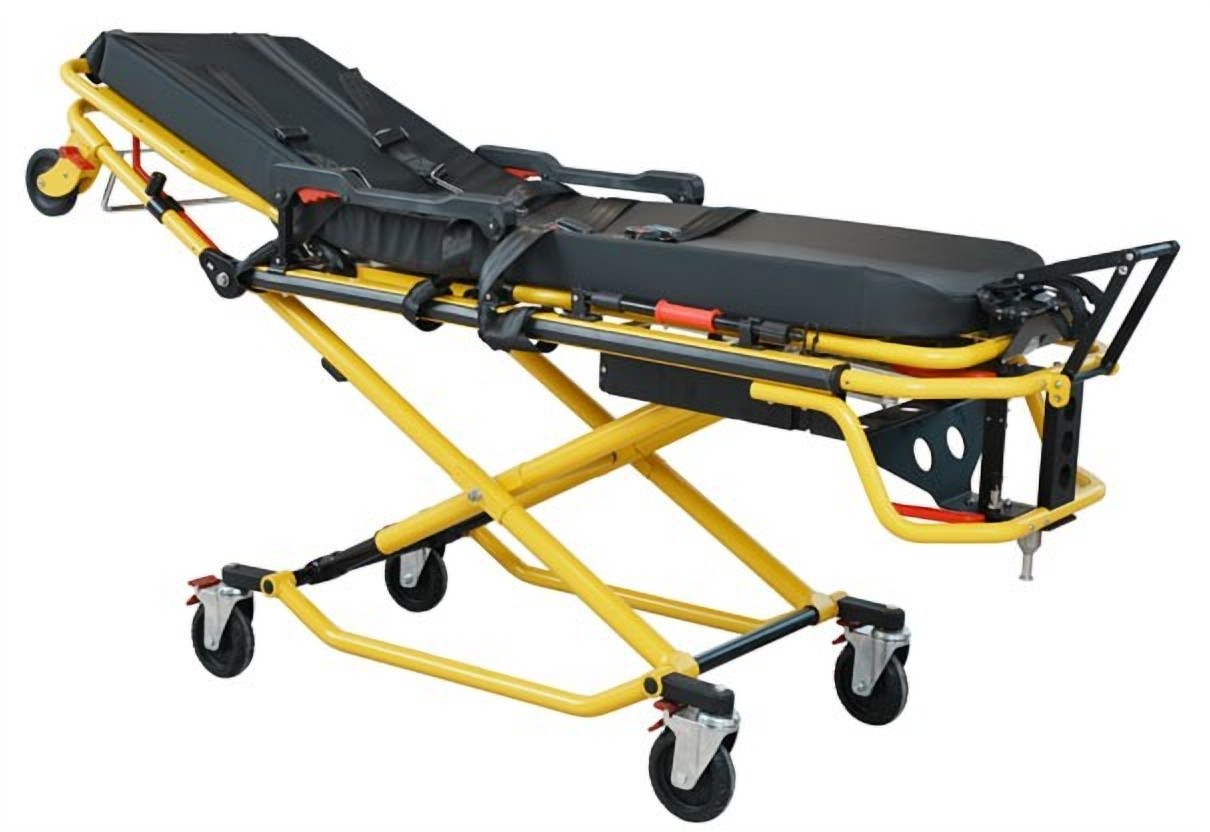

The DIXION Portus 2039 is an ergonomically designed patient transfer trolley constructed from high-quality aluminum alloy for durability and lightweight operation. It features a multifunctional folding undercarriage that allows for ground movement and convenient vehicle loading.

Equipped with a gas spring system, the stretcher offers eight levels of height adjustment and articulated sections to manage various emergency situations. The low-level chassis structure ensures stability during transport and storage.

Patient Safety and Comfort

Three-point vest-style safety belt and additional leg strap for secure transportation

100mm thick waterproof PVC mattress with a concave sponge design for comfort

Flip-type lightweight polymer plastic guardrails for easy patient access

Shock-absorbing 6-inch universal wheels with integrated brakes

Functional Design

X-shaped leg structure provides increased stability during lifting operations

Eight-level height adjustment controlled via gas springs

Folding telescopic IV pole with a maximum adjustable length of 71cm

Integrated oxygen cylinder bracket and stretcher fixing lock for vehicle use

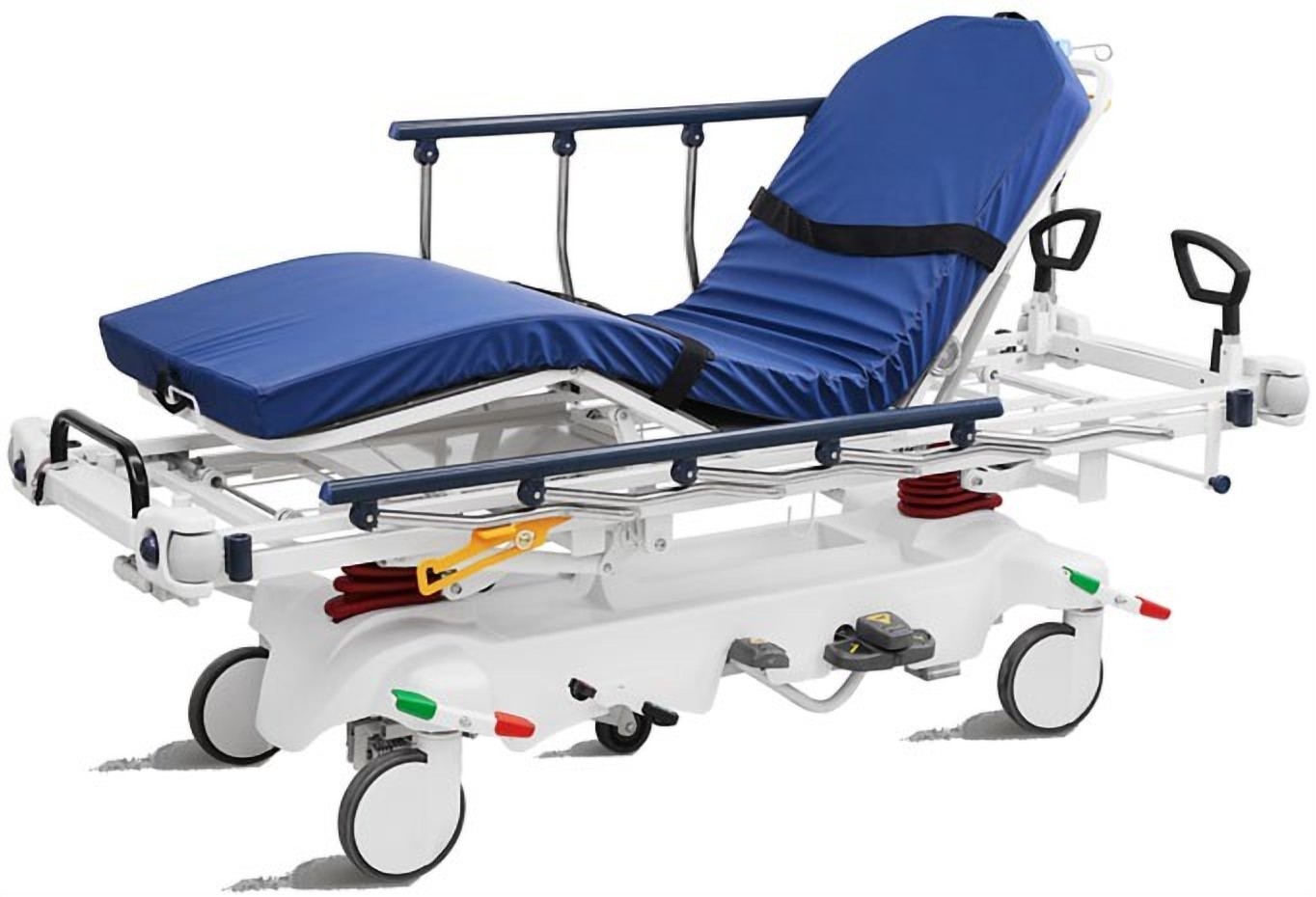

The DIXION Portus 2041 is an ergonomically designed patient transportation trolley engineered for comfort and durability. It features a robust dual hydraulic cylinder system for smooth height and tilt adjustments, ensuring a stable platform for both patients and medical staff during transfer.

Equipped with a phenolic resin back bed plate for X-ray transparency and a mobile film cassette holder, this trolley allows for diagnostic procedures without unnecessary patient movement. The high-strength guardrails and integrated storage for oxygen cylinders enhance its utility in emergency and surgical departments.

Positioning and Control

Dual hydraulic cylinders for height, Trendelenburg, and Reverse Trendelenburg adjustments

Gas spring assisted backrest adjustment up to 85°

Manual leg rocker mechanism for knee-rest positioning up to 50°

Four foot pedals for convenient access to hydraulic functions from various angles

Safety and Mobility

Four 200mm diameter central locking castors with dust-proof covers

Foldable 5-gear high-strength guardrails for patient protection

Four built-in 75mm bumper wheels to protect the trolley and facility walls

PP base cover designed with dedicated space for oxygen cylinders and patient belongings

Radiology Features

Phenolic resin back plate allows for X-ray imaging

Integrated X-ray holder with a movable film cassette mechanism

Powder-coated steel platform sections for long-term durability

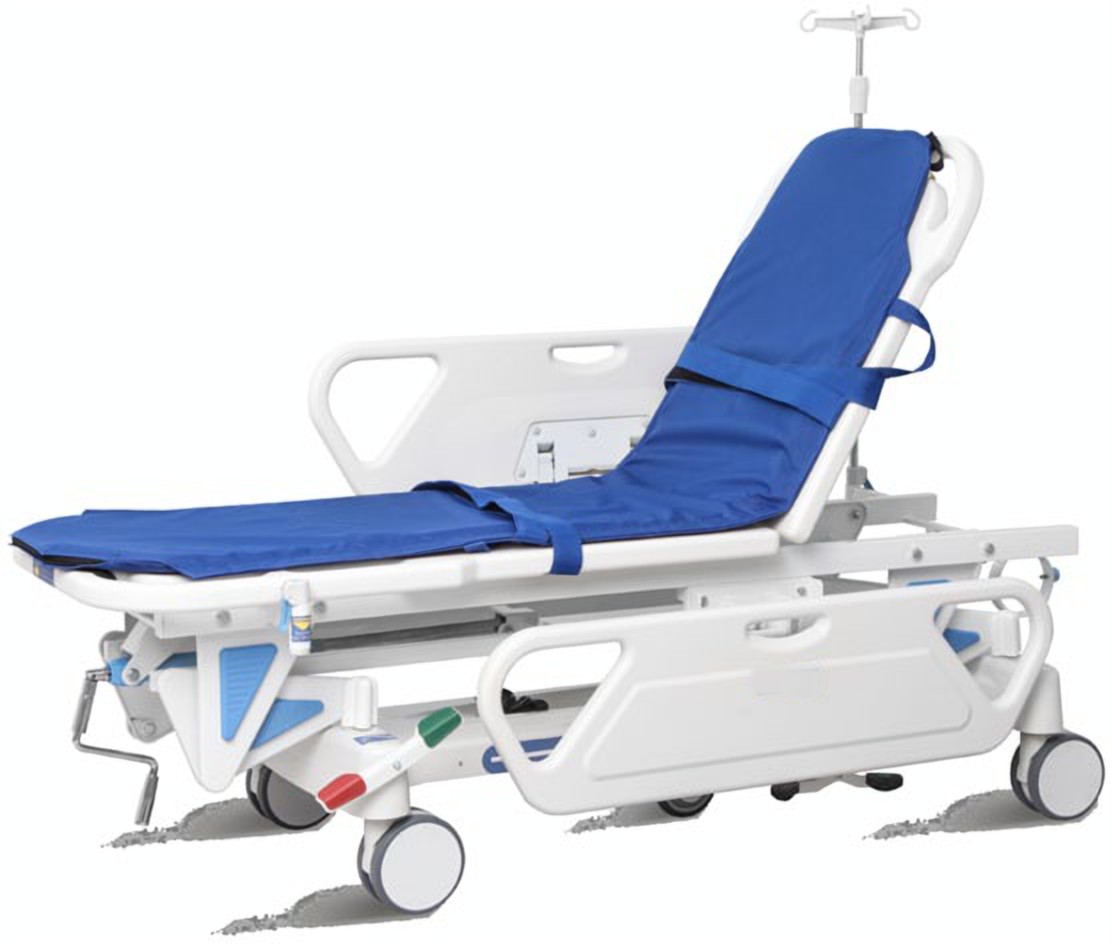

The DIXION Portus 2043 is a robust hospital transfer stretcher designed for stability and maneuverability in dynamic environments. It features a high-quality PP platform and guardrails for easy sterilization and patient safety.

Equipped with a directional center wheel and double-side castors, this trolley ensures precise control during transit, while the adjustable backrest enhances patient comfort.

Structural Design

Bed frame and chassis constructed from 30x50mm square steel tubing for increased stability

11-process epoxy painting provides an anti-bacterial coating resistant to high-impact forces

Bed platform and side guardrails made of environmental PP material sterilizable up to 100°C

Mobility and Control

Four 6-inch double-side castors with TPR tires for wear resistance and smooth movement

Simultaneous locking mechanism via step pedals located on both sides of the trolley

Engageable directional center wheel to facilitate navigation in hectic corridors

Patient Care Features

Gas spring assisted backrest adjustment up to 70 degrees

Telescopic IV pole with 4 hooks and dual placement provisions

Integrated oxygen bottle holders located under the headboard and on the chassis

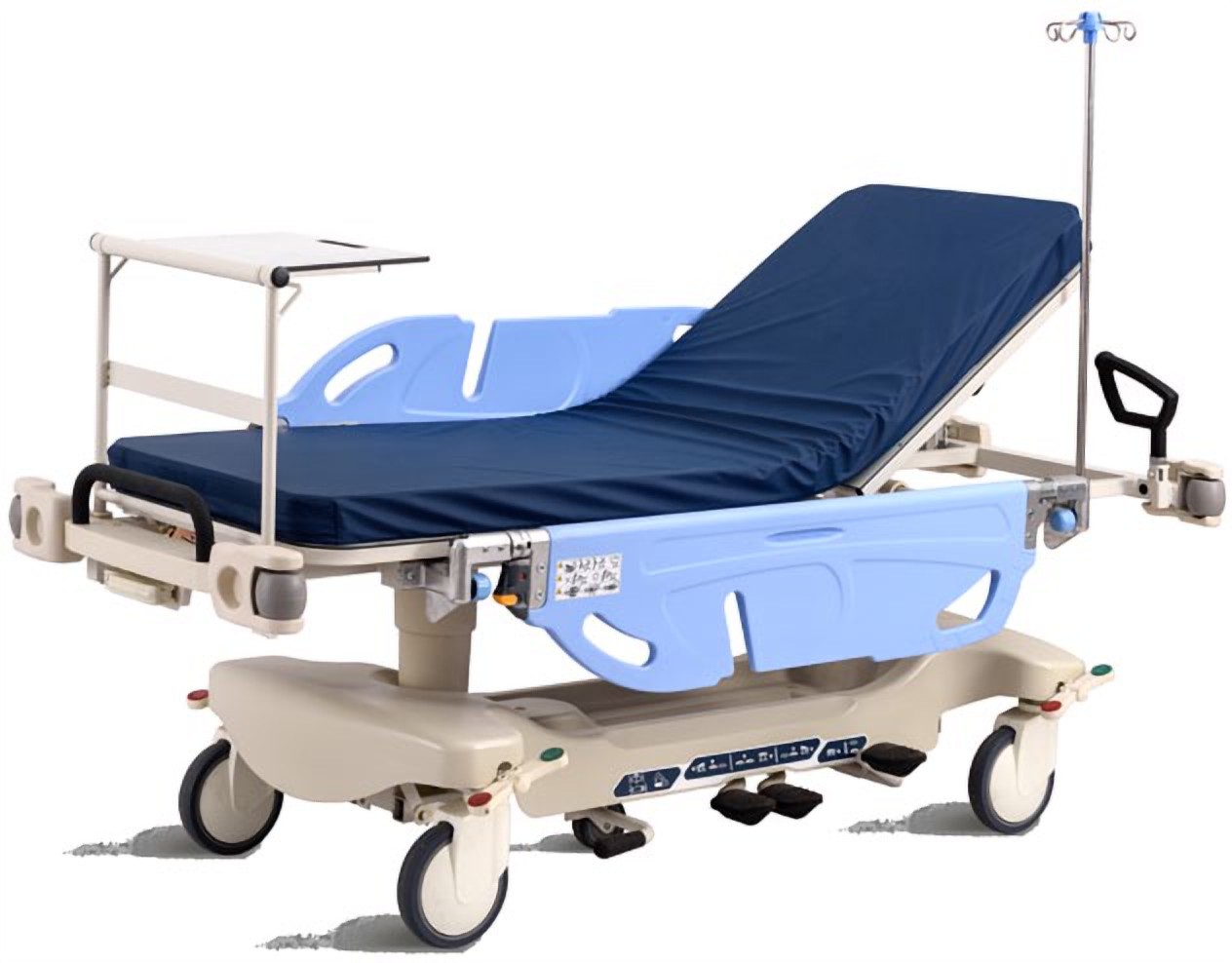

The DIXION Portus 2045 is a professional transportation solution optimized for critical care environments. It features a robust dual-pump hydraulic system for height adjustment and Trendelenburg positioning, ensuring smooth patient handling during intensive care transfers.

Engineered for efficiency, the trolley includes innovative side rails that function as transfer boards when horizontal, creating a zero-gap bridge to hospital beds. Integrated T-shaped gaps allow for seamless fluid drainage tube management.

Clinical Efficiency

Side rails can be fixed horizontally to serve as a transfer board or a treatment surface for IV administration.

Integrated angle indicators on the guardrails show the precise degree of backrest elevation.

T-shaped side-rail gaps facilitate the passage of drainage tubes during transit.

Foldable handles and a fifth center wheel improve maneuverability in dynamic clinical environments.

Safety and Mobility

Four-corner bumpers protect the trolley and facility walls during transport.

8-inch central control casters with foot pedals for immediate braking and directional lock.

Stainless steel IV pole with a 15kg bearing capacity and four dedicated mounting holes.

Protective bottom plastic cover for simplified hygiene and instrument storage.

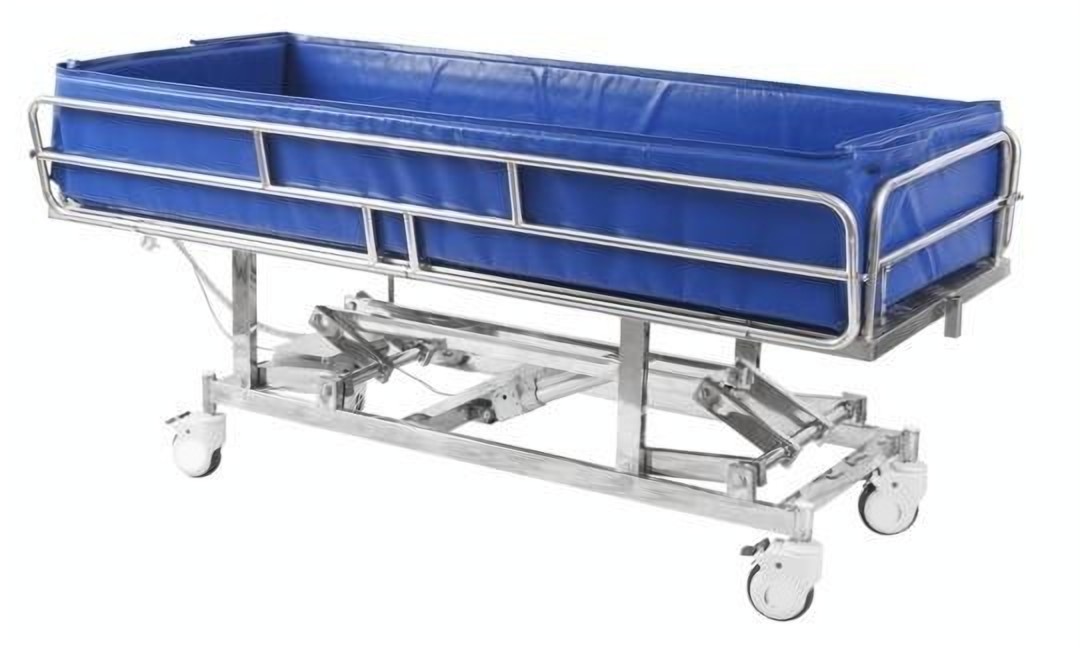

The DIXION Lavo 6100 is built for bathing patients with limited mobility; its height range is 600–830 mm and the bed tilts 1° for drainage.

Key features

Stainless steel frame with mirror polish

Waterproof linear motor

1° tilt for drainage

Removable bath tank with high-density EVA lining, heat resistant from −10 °C to +80 °C

Stainless steel side rails and bed ends

4 covered castors of 5 in
