Incubators

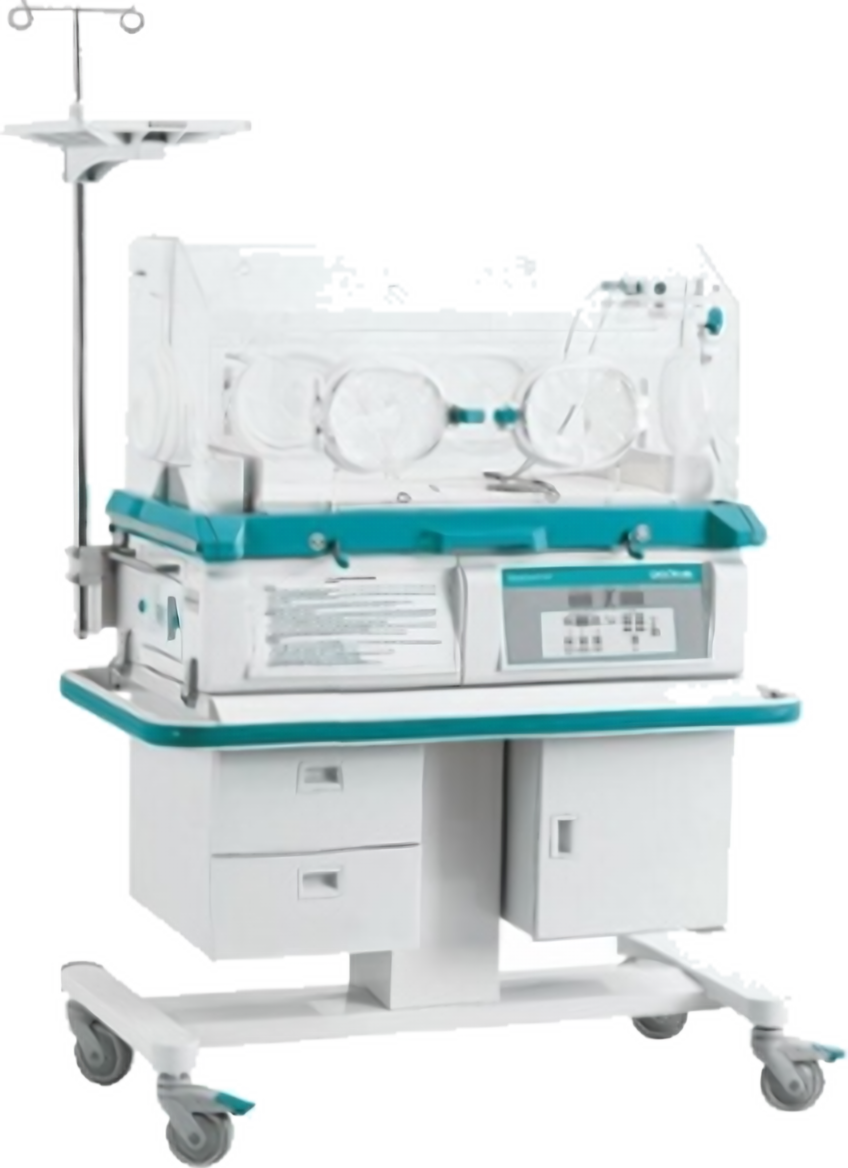

Infant incubator BabyGuard I-1103 for intensive care is air-temp and skin-temp servo-controlled by a micro-computer and equipped with a special air circulation system inside the apparatus which minimizes the flow in the hood environment. The automatic curtain reduces the heat loss. The double-walled hood conserves the heat for 2 hours.

Features

Mode of control: Air mode and Baby mode controlled by micro-computer

Passive air humidification in the chamber

Double-walled hood

Basic stand on wheels and with brakes

Weigh scales (optional)

3 drawers

Side windows of the chamber are equipped with transparent and flexible sleeves.

Front access window with iris diaphragm

Smooth bassinet adjustment

Film touchpad control

LED indicators reflect real temperature of skin and air, set temperature of air, heating

7-alarm option

RS-232 interface for distance control

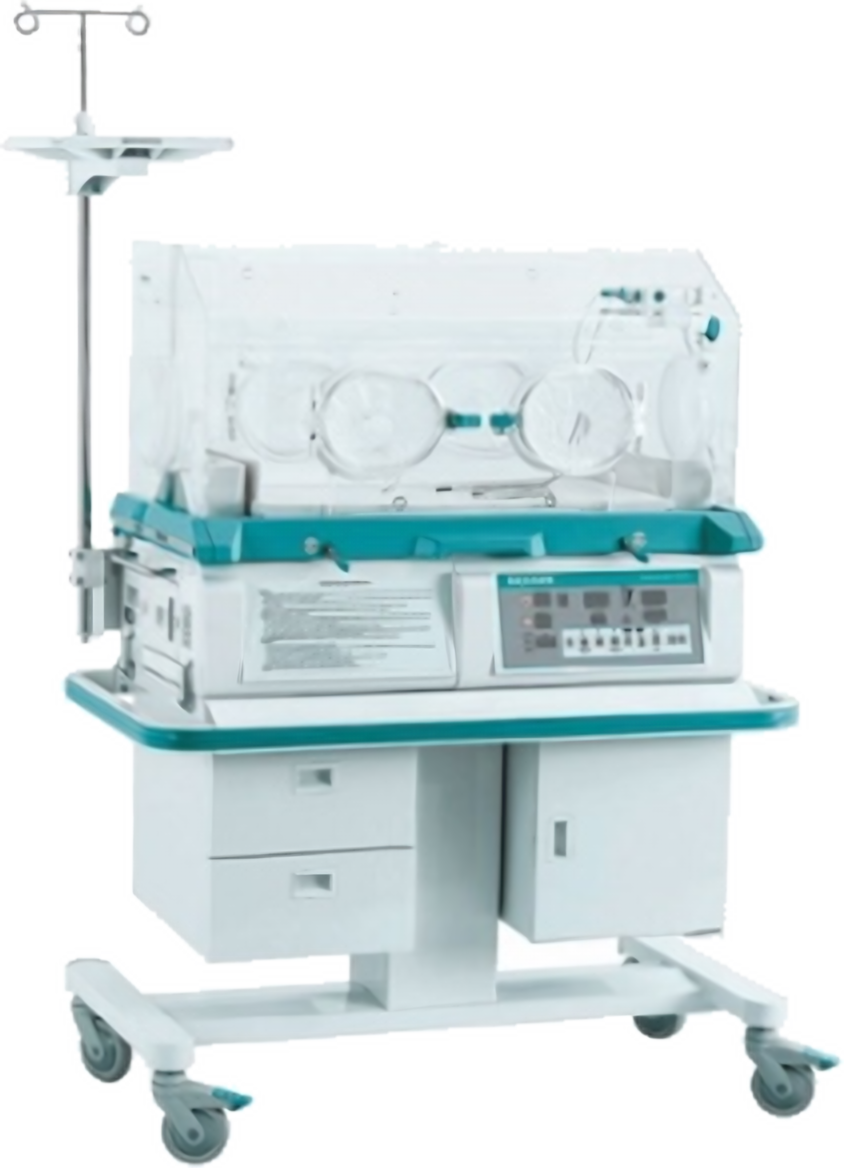

Infant incubator BabyGuard I-1107 for intensive care is air-temp, skin-temp, air humidity and oxygen concentration (optional) servo-controlled by a micro-computer and equipped with a special air circulation system inside the apparatus which minimizes the flow in the hood environment. The automatic curtain reduces the heat loss. The double-walled hood conserves the heat for 2 hours.

Features

Air temperature and skin temperature servo-control

Air humidity servo-control

Oxygen concentration display system

Double-walled hood

Basic stand on wheels and with brakes

Weigh scales (optional)

3 drawers

Side windows of the chamber are equipped with transparent leaves and flexible sleeves.

Front access window with iris diaphragm

Smooth couch adjustment

Film control keyboard

LED indicators reflect real temperature of skin and air, set temperature of air, heating

9-alarm option

RS-232 interface for distance control

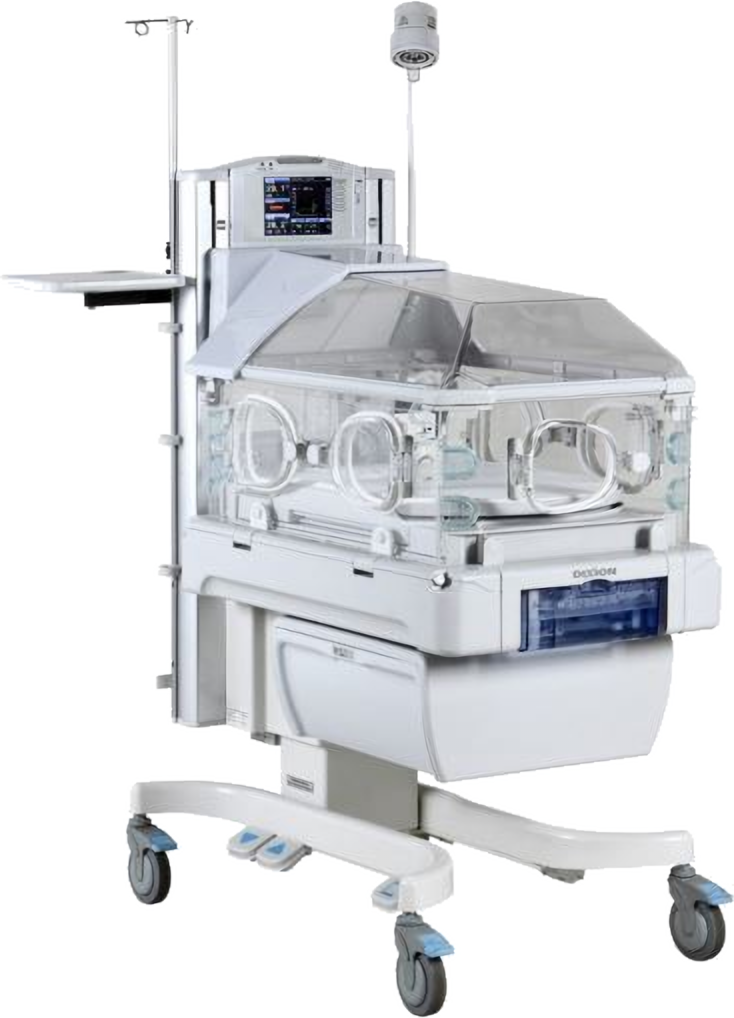

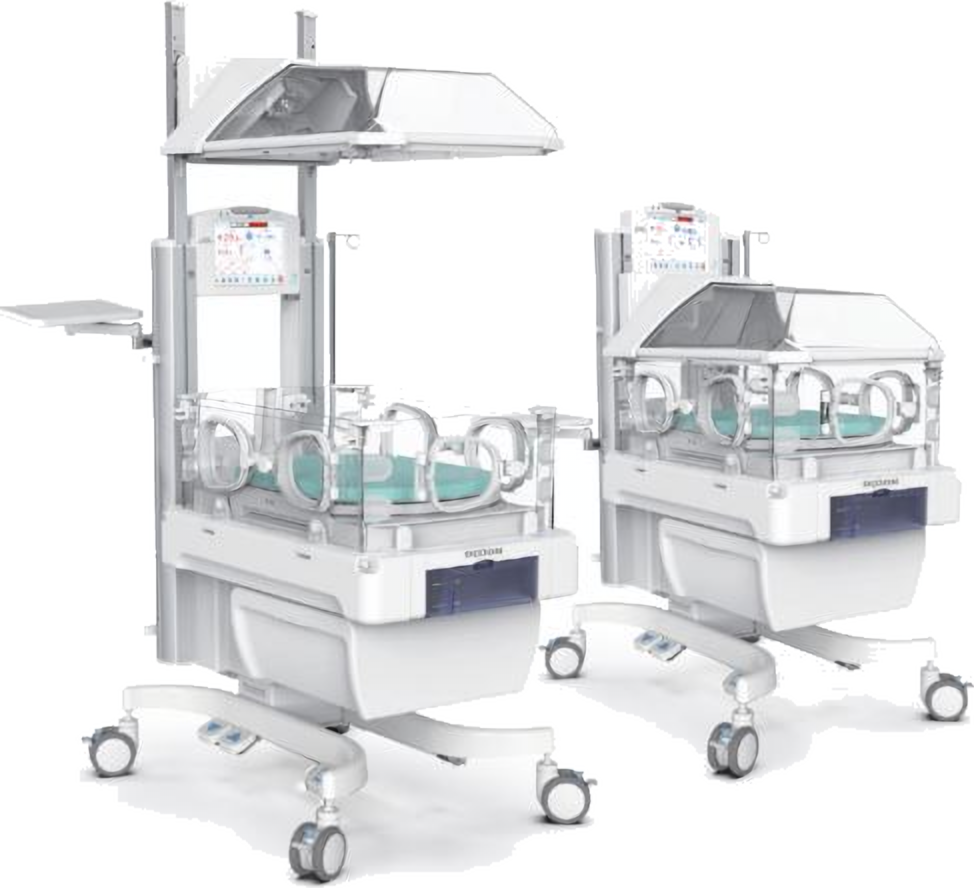

The three-in-one product integrating incubating + first aid + monitoring gives new definition for NICU and meets various requirements.

Fast switching and seamless care.

Fast switching between infant incubator and radiant warmer modes by one click, providing a closed incubation environment for newborns, while also can be transformed into an open emergency space.

Secure in-hospital transfer solutionOptional UPS power supply creates a one-stop transfer program of “Obstetrics—NICU—Operating Room”, facilitating to maintain stable vital signs of newborns, improving eciency of clinical practice.

+ Represents for standard function.

„opt“ Represents optional function.

Infant Incubator Mode (Close Mode).

For the provision of a similar maternal uterus environment for the neonate to provide stable and controlled comfortable thermal environment and servo-controlled humidity and oxygen level. It is ideal for use in Infant temperature recovery, resuscitation and other occasions.

Infant Radiant Warmer Mode (Open Mode).

Uniform heat distribution, maintaining an optimal thermal environment for caregiver to provide immediate access to the newborn, it is ideal for use in labor and delivery rooms, NICU, and Operating Room.

Monitor.

Physical parameters were monitored such as Neonatal ecg, respiration, noninvasive blood pressure, oxygen saturation, pulse rate, Exhaled carbon dioxide.

Standard Configuration.

Main body (including baby compartment, Base, Controller,.

I.V.pole and tray), Sensor box, Skin temperature sensor and.

Vertical height adjustment stand (VHA stand), Warmer module.

Optional Configuration.

Weighing system, Monitor shelf and Disposable.

skin temperature sensor, Observation lamp, Sp02, etc.

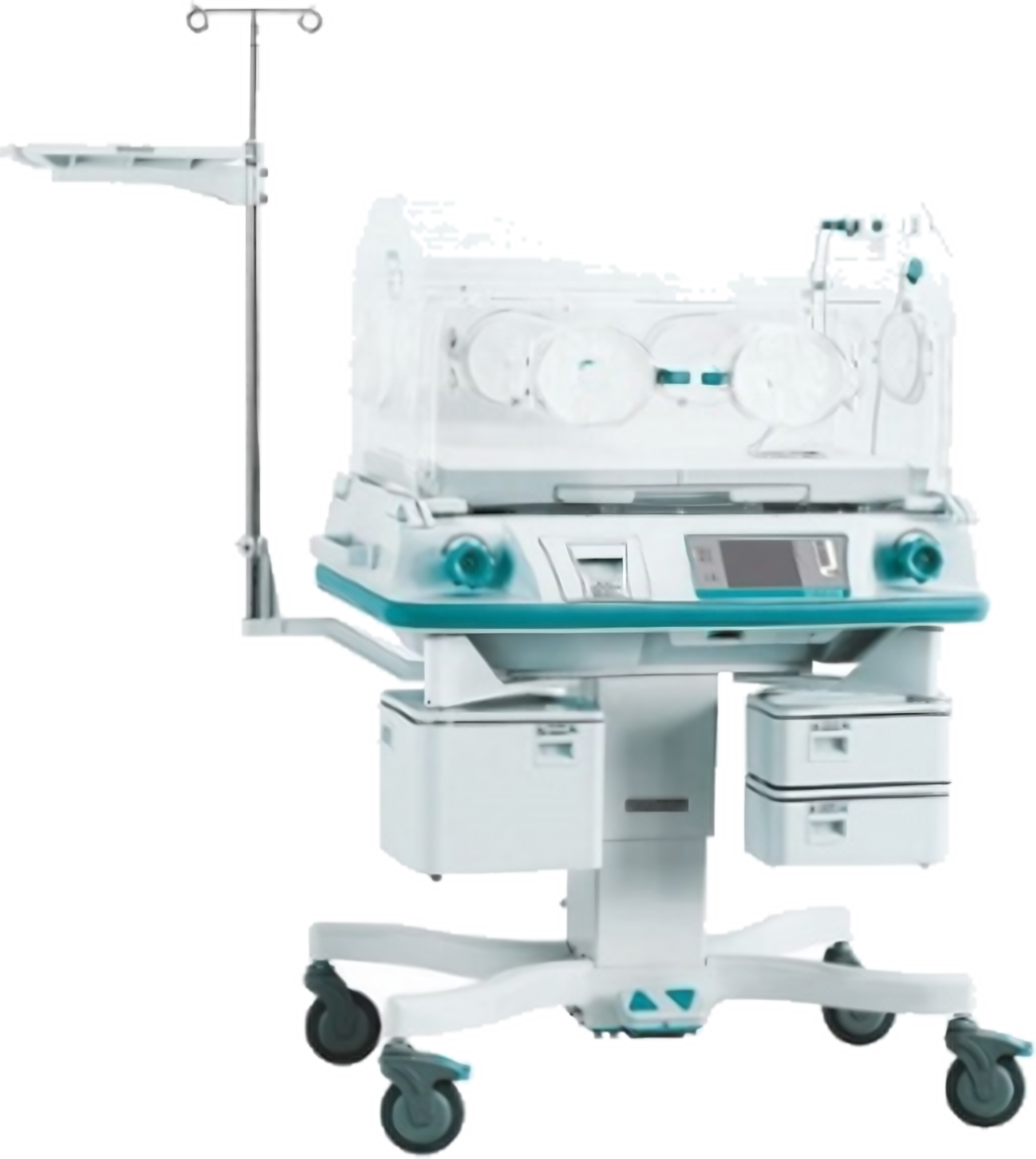

Infant incubator BabyGuard 1-1120 for intensive care is air-temp, skin-temp, air humidity and oxygen concentration servo-controlled by a micro-computer. Its graphic display represents all trends, which allows the doctor to make ‘at-a-glance’ assessment of the environment inside the incubator. The infant incubator is equipped with a special air circulation system inside the apparatus which minimizes the flow in the hood environment. The automatic curtain reduces the heat loss. The double-walled hood conserves the heat for 2 hours.

Features.

Air temperature and skin temperature servo-control

Air humidity servo-control

Oxygen concentration servo-control (optional)

Double-walled hood

Basic stand on wheels and with brakes

Built-in weigh scales (optional)

3 drawers for belongings and shelves for additional equipment

IV stand

Side windows of the chamber are equipped with transparent leaves and flexible sleeves.

Front access window with iris diaphragm

Smooth bassinet adjustment

X-ray film cassette

Electronic control

Film control keyboard

Large LCD display reflects real skin and air temperature, set air temperature, heating, graphic trends (up to 48 hours)

9-alarm option

RS-232 interface for distance control

Vertical height adjustment stand

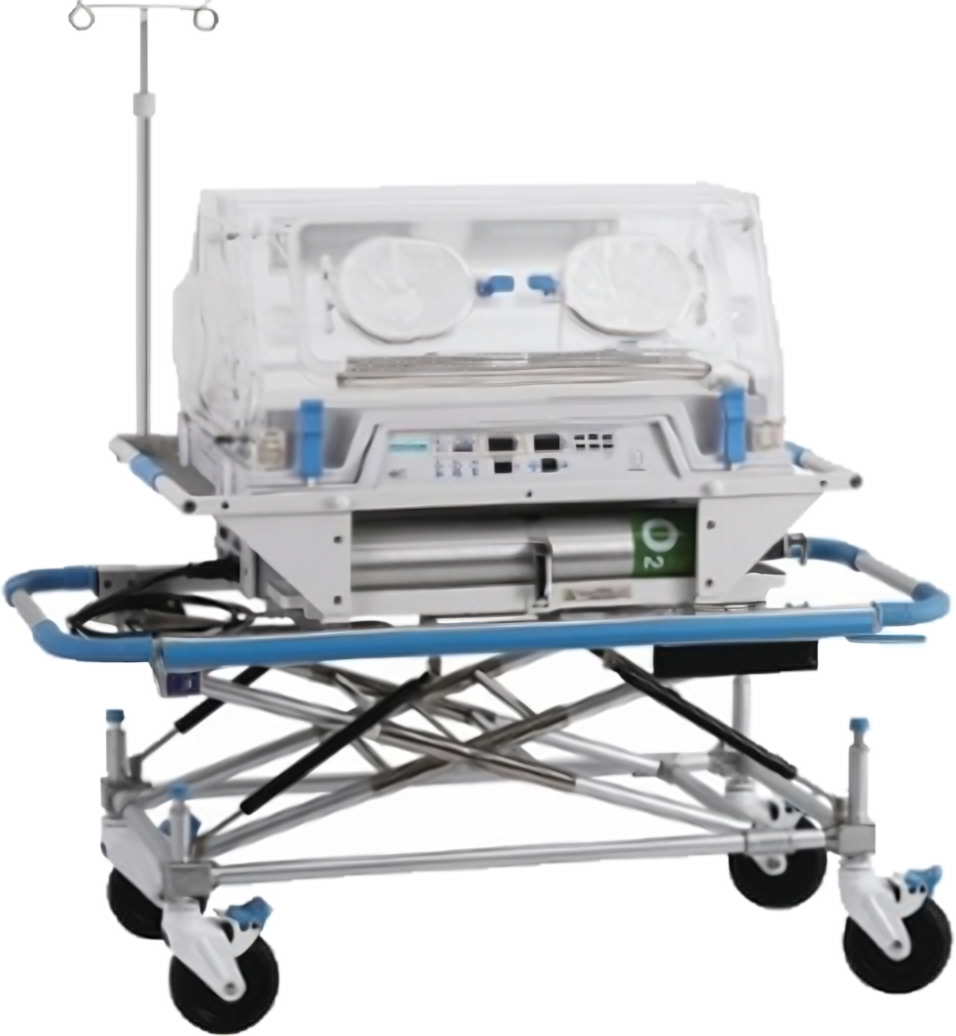

Infant Incubator Babyguard I-1125 (Transport) is designed for transport and intensive care.

Infant Incubator Babyguard I-1125 (Transport) with computer controlled air-temp/skin-temp.

system is equipped with built-in battery, that allows using it in neonatology department as well.

as in ambulance, during the patient tranportation.

Features

Mode of control: Air mode and Baby mode controlled by micro-computer

AC/DC power alternatively

Multiple failure alarm indication

Passive air humidifcation in the chamber

Double-walled hood (acrylic-glass) with side door(so that the bassinet can be pulled out from it)

The height of the unit is adjustable

Oxygen supply system

Observation lamp

Set temp/Air temp/Baby temp/battery capacity

can be displayed separately

>37°C temperature set function (optional)

Standard Configuration

Main Body (Hood, Controller, Bassinet, Internal battery,Observation lamp)

Oxygen Cylinders

Skin temperature sensor

I.V. Pole

Mattress

Adjustable stand

Optional Configuration

37°C override temperature mode

Disposable skin temperature sensor

Ambulance trolley
