Electrocardiographs

Portable digital 3-channel ECG machine with modern design. Easy to use with a membrane keyboard. ECG data storage. Automatic ECG data interpretation. Built-in battery and automatic switch-over of power supply. Built-in thermal printer. Data transmission to PC.

Portable digital 3-channel electrocardiograph.

Modern design

Folding LCD display 320×240mm

3-channel representation of all 12 leads simultaneously

Flexible printing solutions

Built-in high resolution thermal printer

Built-in rechargable Li-ion battery, AC/DC power supply

Well designed touch panel

Ethernet, RS-232, USB connection to PC Data transmission

Automatic ECG parameter measurement and interpritation tested with AHA/CSE/MIT databases

Complete digital filter, no baseline drift, AC, EMG interference

Baseline automatically adjustable, optimizing printing position

Auto/manual operation selectable

Lead-off detection and alarm

Internal storage for up to 500 ECG records

This is a new generation 3-channel ECG, which incorporates benefits of the advanced technology and innovative design. The device has an extremely compact and lightweight body and is designed for emergency rooms, home visits, etc.

For adult and pediatric patients.

One-button Operation.

5“ full-touch screen.

Weight < 1 kg.

External Device Support.

two USB ports and one microSD card slot.

connectable to barcode scanner, external printer, USB Memory Drive as well as microSD card.

for data transmission – LAN, build-in Wi-Fi, built-in GSM/GPRS cellular modem.

exports ECG reports in – PDF and optional SCP, XML, DICOM.

with a fully charged battery, can work up to 8.5 hours.

Modern complete digital design

Foldable antiglare LCD display

12 leads simultaneous acquisition

High resolution thermal printer

Built-in rechrgable Li-ion battery

Well designed touch pannel

RS-232 port

Automatic adjustment of baseline for optimal recording

Complete digital filter, avoiding baseline drift, AC, EMG interference

Baseline automatic adjusment, printing position

Auto/manual operation

Lead-off detection and alarm

Selectable printing formats, standard single channel or single channel & rhythm lead

All-lead (18/15/12/9-lead) ECG workstation.

The 18/15-lead ECG brings more information on right precordial and posterior wall, helping doctor find the accurate location of the myocardial infarction or ischemia, and apply right treatments, preventing possible tissue death.

All-lead (18/15/12/9-lead) ECG workstation

15” touch screen

waterproof alphanumeric keyboard

interface – VGA, USB, and SD card slot

18/15-lead Resting ECG for MI Diagnosis

12-lead Standard Resting ECG

9-lead Resting ECG Specially Designed for Neonates

Pharma Study

Vector ECG & Timed Vector ECG (VCG&TVCG)

Signal Average ECG (SAECG)

Heart Rate Variability (HRV)

ST-view function (Intuitive Display of ST-segment)

Auto Arrhythmia Detection

On-screen Diagnosis

Specification:
T0

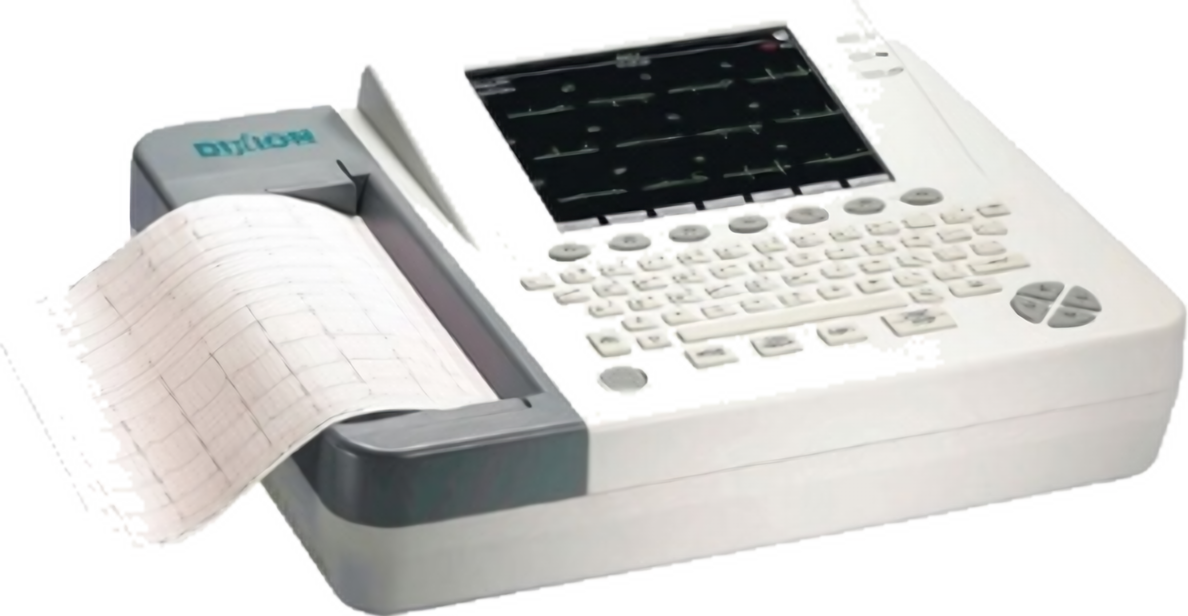

Lightweight and portable digital 12-channel ECG machine. Large graphic LCD with backlight. Internal ECG data storage (800 ECG records). Automatic ECG data interpretation. Built-in rechargeable lithium battery. Built-in high resolution thermal recorder to print on normal thermal paper 210mm or 215mm and A4 size fax paper (support external USB printer). USB interface for patient record transmission. Data transmitting to PC via LAN/ internal Wi-Fi. Sleep/Wake-up mode. Various report formats.

Compact and lightweight design with carry handle

8″ high-resolution color (optional-touch screen)

USB/LAN connection to PC data transmission (Wi-Fi -optional)

Data recording, analysis, printing and storage provided by pressin one button

Sleep/Wake-up mode for saving energy and extending LCD life

Various report formats to meet different needs

Automatic arrhythmia detection and recording

Support linear/2D barcode scanner

Internal storage of up to 800 digital ECG records, including analysis and interpretation

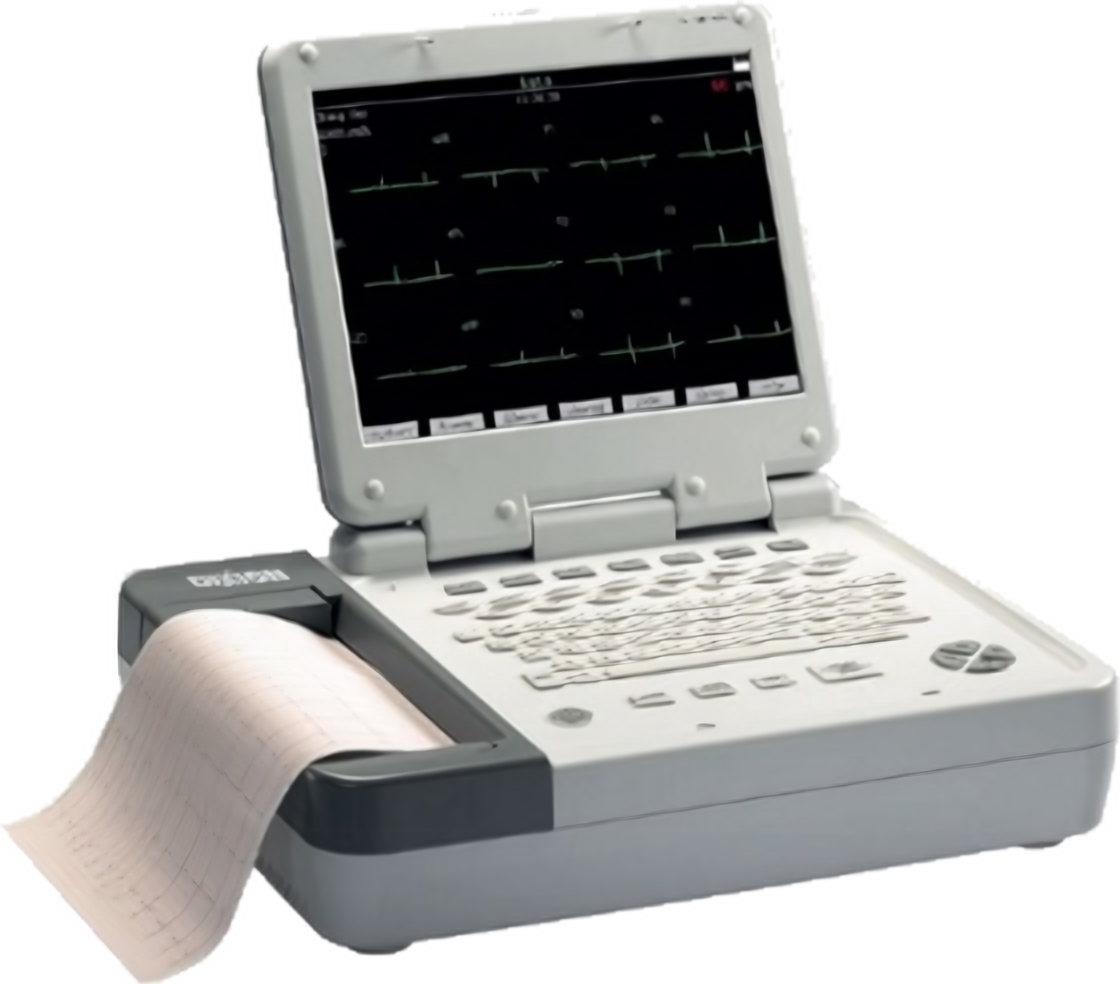

Modern easy-to-use expert class ECG machine with notebook design. Designed for both in-hospital and mobile use. 12.1″ high-resolution color touchscreen foldable display. Provisional diagnosis output. Automatic data interpretation.

Preview and print.

It is possible to preview a report for both real-time printing and file storage.

Waveform process.

Doctor can set the printing style, printing speed, sensitivity and use filter to get better waveforms instead of repeating the examination.

Replay and record.

Stop and review the waveform backward and forward per second or page then print out to grasp every arrhythmia.

File storage.

Internal storage for up to 800 patient records including waveforms, measurement and diagnosis, which can also be enlarged by flash disk or PC hard disk.

12.1″ foldable antiglare color touch screen

12-channel ECG waves are displayed and recorded simultaneously

Curves “pause” and “repeat” for arrhythmia episode determination

Internal storage for up to 800 ECGs

Waveforms and auto-diagnosis results preview before printing

Heart rate variability (HRV) analysis

Data transmission to PC via series port Ethernet/USB/internal Wi-Fi

Flexible Printing Solution (built-in high resolution thermal recorder to print on normal thermal paper and A4 size fax paper+ support external USB printer)

Anti-noise technology with comprehensive filters and the high CMRR 140 dB

Stress test (Optional)

120 real-time ECG waveform freezing and review

Support linear/2d barcode scanner

Trolley and cable bracket

ECG preview before printing
